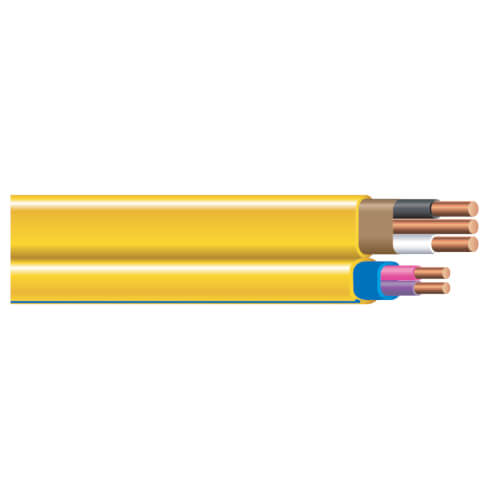

Nonmetallic-Sheathed Cable with both Power Conductors and Control/Signal Conductors. 600 Volts.
Copper Conductors. Color-Coded Jacket. SIMpull® Jacket Designed for Easier Pulling.
Southwire® Romex® Brand SIMpull® NM-B-PCS DUO™ nonmetallic-sheathed cable may be
used for both exposed and concealed work in normally dry locations at temperatures not to
exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National
Electrical Code. NM-B-PCS cable is primarily used in residential wiring for SMART home
applications such as 0-10V DC dimming controls for LED lighting. NM-B-PCS cable may be
run in air voids of masonry block or tile walls where such walls are not wet or damp locations.
Voltage rating for NM-B-PCS cable is 600 volts. All conductors are rated 600 volts.
Southwire® Romex® Brand SIMpull® NM-B-PCS DUO™ cable complies with the following:
- Compliant with NEC Article 334 (NM Cable) and the Class 2/Class 3 circuit separation
requirements of NEC 725.136(I)(1) and 725.136(I)(2)
- Listed per UL Standard 719
- ASTM B-3 and B-8
- Federal Specification A-A-59544
- REACH/RoHS Compliant
