R-BC-075WT has been discontinued
Discontinued May 16, 2024
This product was discontinued by the manufacturer.
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
Die Cast Aluminum
3/4"
Description
–
Note: Removal Tool sold separately.

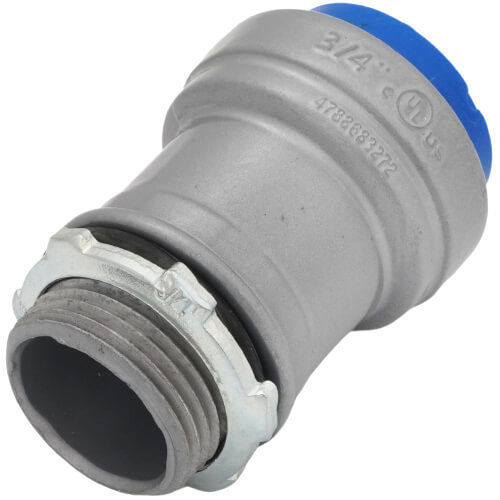

Southwire SIMPush Rigid connectors are used in dry or wet locations to connect the end of UL-approved threaded or non-threaded, RMC, IMC, GRC, ARC and rigid stainless-steel conduit to metal boxes. Removable and reusable with SIMPush removal tool.
Product Features:
Southwire SIMPush Rigid connectors are used in dry or wet locations to connect the end of UL-approved threaded or non-threaded, RMC, IMC, GRC, ARC and rigid stainless-steel conduit to metal boxes. Removable and reusable with SIMPush removal tool.
Product Features:
- Manufactured with corrosion resistant copper free aluminum and powder coated for excellent durability
- Corrosion-resistant copper-free diecast aluminum construction
- Raintight to prevent water from getting into conduit, box, or enclosure
- IP66 – Dust tight and protects against powerful jetting water
- Concrete-tight
- Provides continuous ground
- Internally coated with lubricating grease
- Tested to 100 removal cycles for reuse
- Locking teeth are constructed from zinc-plated steel
- Includes zinc-plated steel lock nut
- NEMA 4X, IP66
- cULus Listed
Specs
–
| Product Type: | Connector |
|---|---|
| Size: | 3/4" |
| Material: | Die Cast Aluminum |
