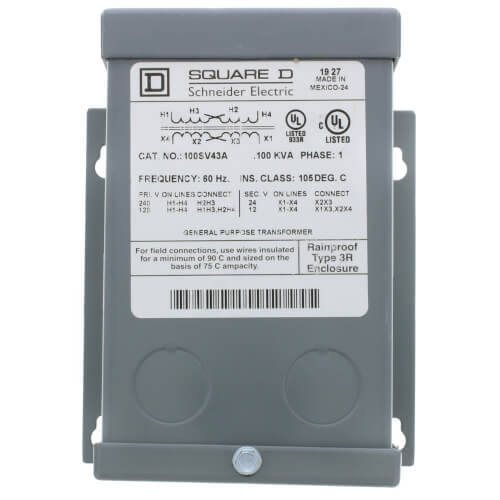

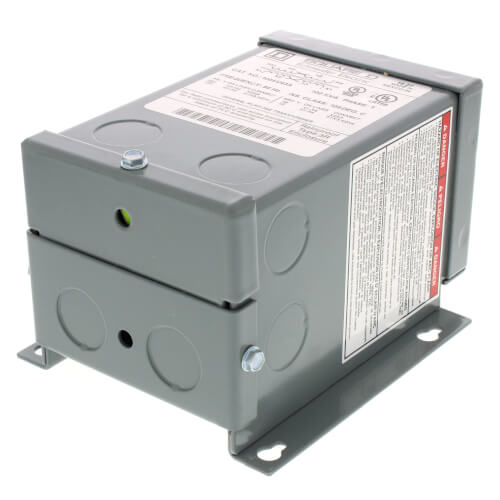

Buck Boost Transformer, NEMA 3R (100 VA, 120/240V, 12/24V)

Overview
Schneider Electric has the expertise necessary to meet your increased demands by providing reliable products and outstanding support services Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. These units can be used outdoors without accessories. This Dry Sealed Transformer has a NEMA 3R rating, and a 1 phase, 10KVA, 240 x 480V, primary voltage with a 120/240V, secondary voltage. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications. Dimensions are 14.75 in (H),9.75 in (W),11.75 in (D). This transformer is wall mounted and is painted sheet steel material.

Features

• Product: Buck and Boost Transformer
• Enclosure Code: 2A
• Enclosure Type: NEMA 3R
• Insulation Temperature: 221 °F (105 °C)
• Primary Voltage: 120 x 240 V
• Power Rating: 0.1 kVA
• Secondary Voltage: 12/24 V
• Temperature Rise: 55 °C
• Warranty: 18 months
