Control Transformer, Panel Mount (100 VA, 240/480V Primary, 120V Secondary)

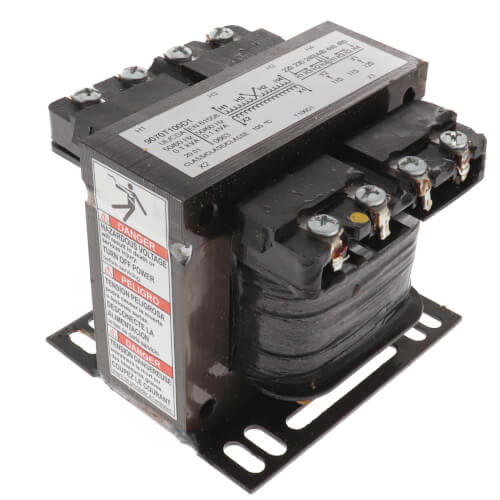

The 9070T100D1 is a 1-phase Industrial Control Transformer with copper windings and screw clamp terminals. The 9070CT9901 commercialized open enclosure transformer supports panel mounting. It is specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines and punch presses or overhead cranes.

• Hz: 50/60
• Transformer Type: Wire-Wound
• Input Voltage: 240/480VAC
• Manufacturers Warranty Length: 1 yr.
• Item: Control Transformer
• Phase: 1
• Mounting: Panel
• Standards: Standard 508 and NEC 450
• Includes: Top mounted fuse block
• Height: 4.55"
• Depth: 3.75"
• Fused: Yes
• Temp. Rise: 80 Degrees C Output
• Voltage: 120VAC
• Enclosure Finish: Varnish Vacuum Impregnation
• VA Rating: 200VA
• Width: 3.59"
