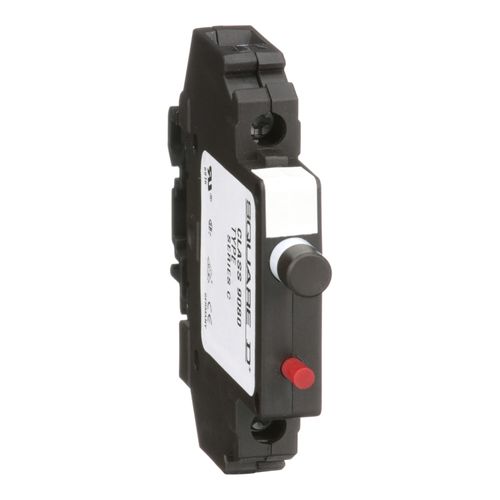

Single Pole DIN Rail Mount Circuit Protector, Thermal Magnetic Trip (10A, 125VAC/65VDC), 9080GCB100
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$100.67 each
Backorder
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
10 Amps
125 VAC, 65 VDC
Description
–
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 10.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000 percent (100 times) rated current.
Features:
Features:
- Circuit Breaker Type: Circuit Protector
- Tripping Mechanism: Thermal-Magnetic
- Terminal Connection Type: Box Lugs
- Reset Actuator Type: Switch
Specs
–
| Poles: | 1 |
|---|---|
| Amperage: | 10 |
| Voltage: | 125 VAC 65 VDC |
| Product Type: | Terminal Cover |
