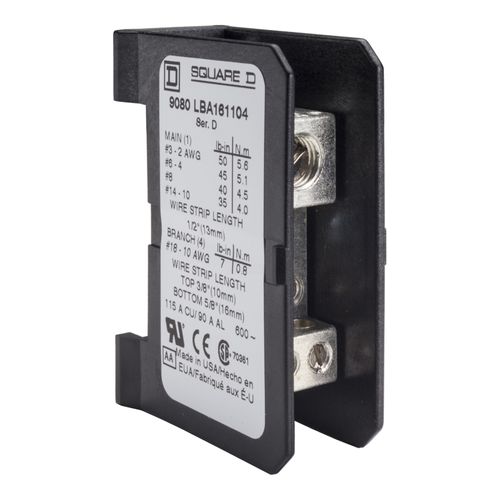

Single Pole Thermoplastic Power Distribution Block (90A Aluminum, 115A Copper, 600VAC, 1 Primary Connection), 9080LBA161104

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one number 14 to number 2 copper or aluminum wires. Each load side lug is rated to accept one number 18 to number 10 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Features:

• Amperage: 115 (Copper)
• Number of Poles: 1
• Number of Primary Connections: 1
• Number of Secondary Connections: 4
• Voltage: 600 VAC
