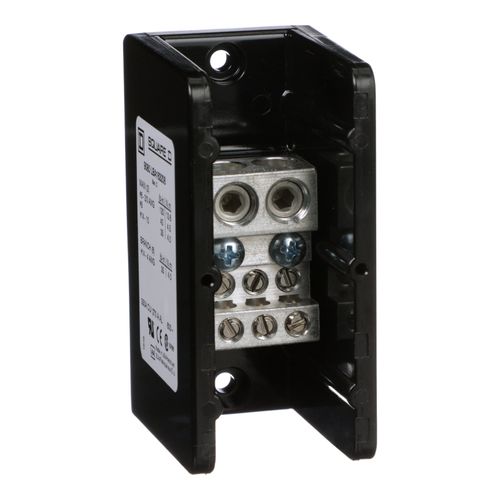

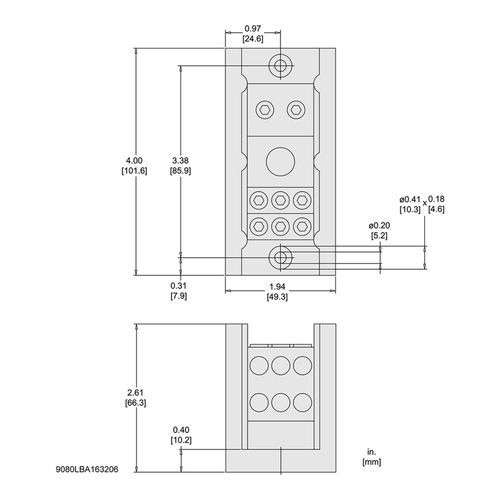

Single Pole Phenolic Power Distribution Block (270A Aluminum, 350A Copper, 600VAC, 2 Primary Connection), 9080LBA163206

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lugs are rated to accept one number 14 to 2/0 copper or aluminum wire. Each load side lug is rated to accept one number 14 to number 4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 350 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Features:

• Amperage: 270 (Aluminium)
• Number of Poles: 1
• Number of Primary Connections: 2
• Number of Secondary Connections: 6
• Voltage: 600 VAC
