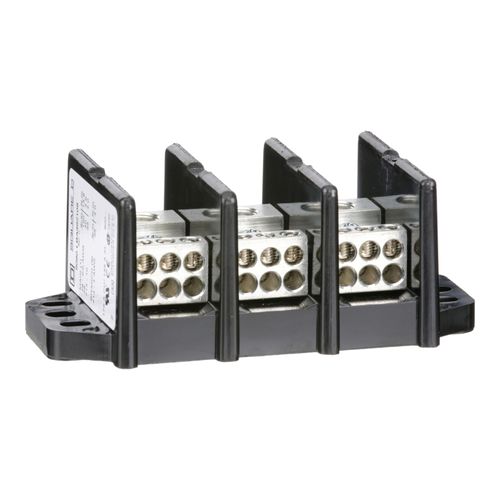

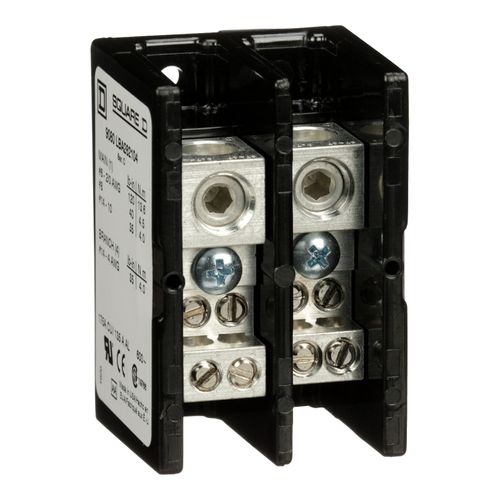

3 Pole Phenolic Power Distribution Block (135A Aluminum, 175A Copper, 600VAC, 1 Primary Connection), 9080LBA362106

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one number 14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one number 14 to number 4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Features:

• Amperage: 135 (Aluminium)
• Number of Poles: 3
• Number of Primary Connections: 1
• Number of Secondary Connections: 6
• Voltage: 600 VAC
