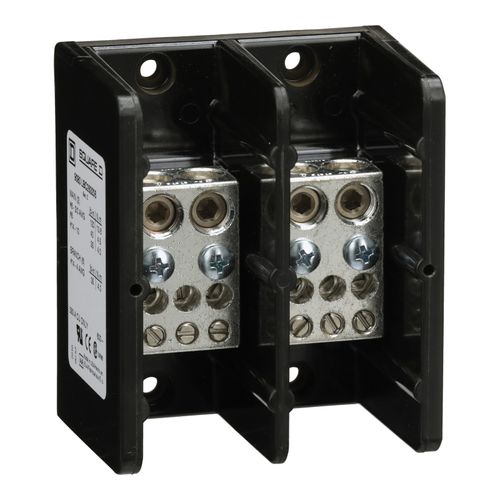

2 Pole Phenolic Power Distribution Block (350A Copper, 600VAC, 2 Primary Connection), 9080LBC263206
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$261.29 each
Backorder
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
350 Amps
600 VAC
Description
–
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one number 14 to 2/0 copper wire. The load side lug is rated to accept one number 14 to number 4 copper wire. The lugs are made of copper. The lugs are rated for 350 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Features:
Features:
- Amperage: 350 (Copper)
- Number of Poles: 2
- Number of Primary Connections: 2
- Number of Secondary Connections: 6
- Voltage: 600 VAC
Specs
–
| Amperage: | 350 |
|---|---|
| Voltage: | 600 VAC |
| Poles: | 2 |
| Product Type: | Terminal Block |
