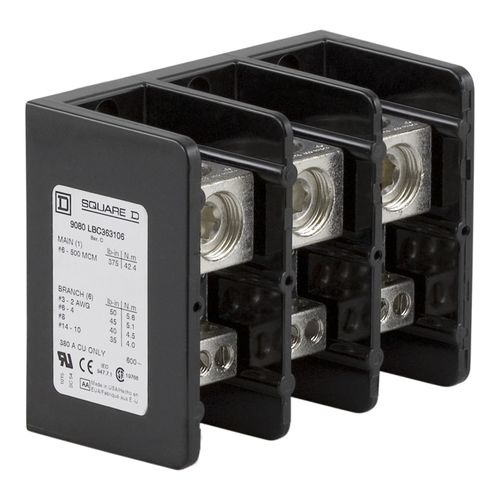

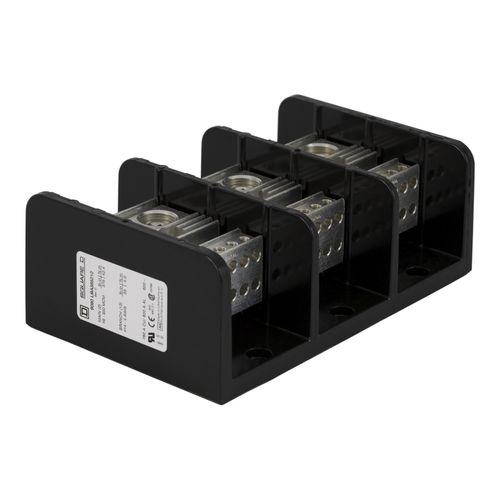

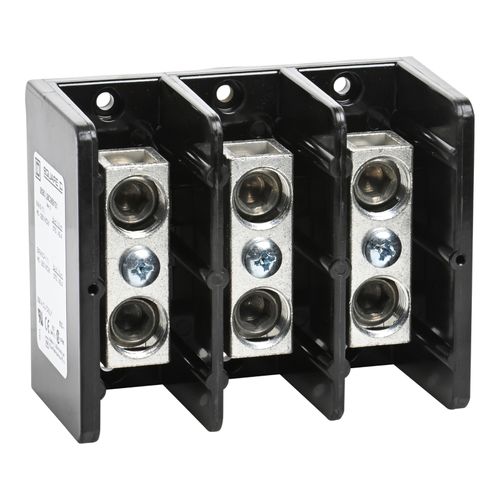

3 Pole Phenolic Power Distribution Block (380A Copper, 600VAC, 1 Primary Connection), 9080LBC363106
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$459.88 each
Backorder
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
600 VAC
380 Amps
Description
–
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one number 4 to 500 kcmil copper wire. The load side lug is rated to accept one number 14 to number 2 copper wire. The lugs are made of copper. The lugs are rated for 300 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Features:
Features:
- Amperage: 380 (Copper)
- Number of Poles: 3
- Number of Primary Connections: 1
- Number of Secondary Connections: 6
- Voltage: 600 VAC
Specs
–
| Product Type: | Terminal Block |
|---|---|
| Voltage: | 600 VAC |
| Poles: | 3 |
| Amperage: | 380 |
