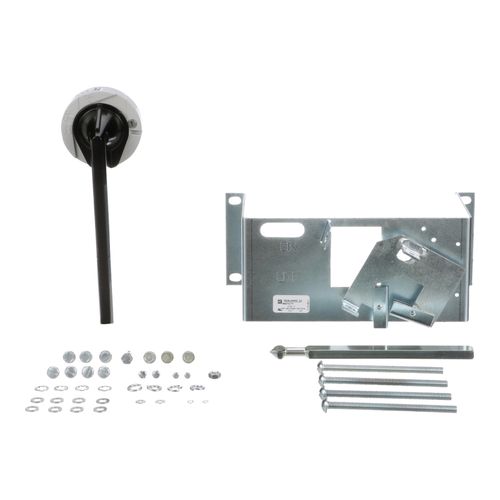

800 Amp Circuit Breaker Operating Mechanism, for MEL, MXL, MAL & MHL Circuit Breaker, 9421LT1

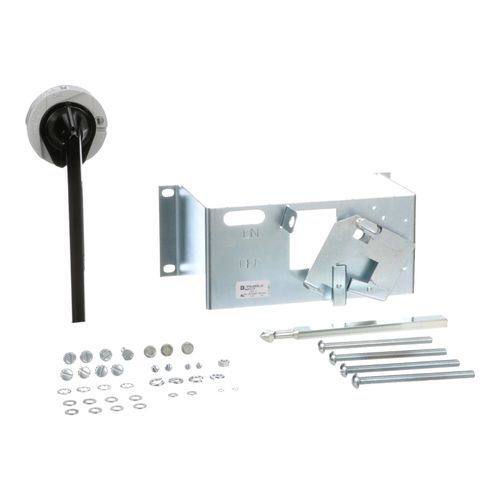

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with MEL, MXL, MAL and MHL circuit breakers. The MEL and MXL circuit breakers can be 2 or 3 pole up to 800 A. The MAL and MHL circuit breakers can be 2 or 3 pole up to 1000 A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 7.19 to 11.625 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.

Features:

• Accessory Type: Operating Mechanism
• For Use With: MEL, MXL, MAL and MHL Circuit Breaker
