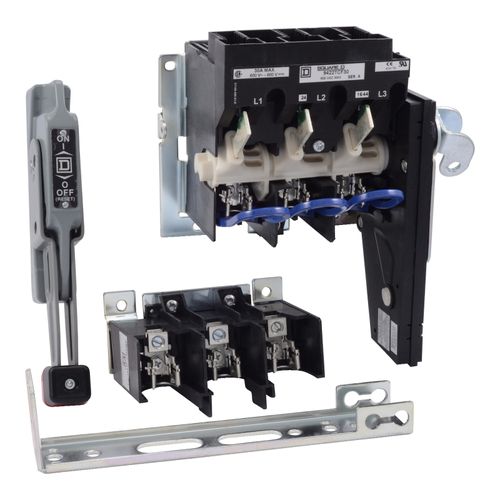

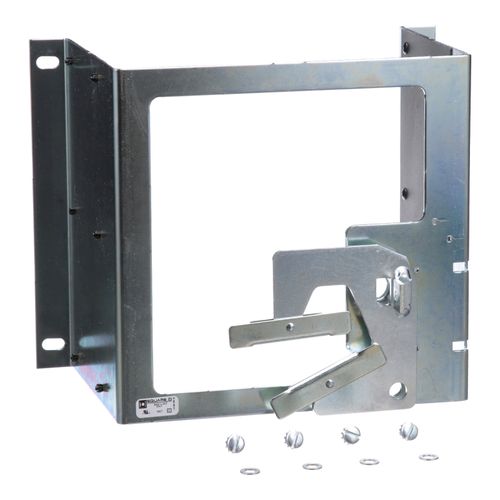

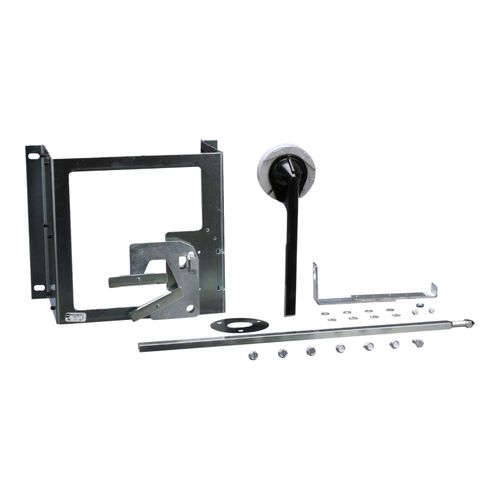

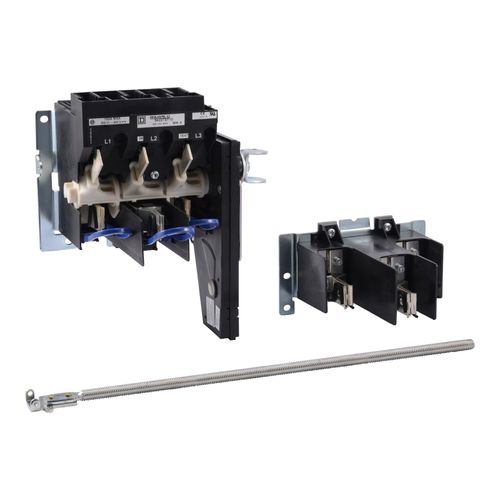

Flange Mounted Variable Depth Fusible Disconnect Switch, Operating Mechanism, & Handle (100A, 600V), 9422ATEF101

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 100 Amps up to 250 V and 100 Amps up to 600 V. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for number 10 to number 0 AWG with copper wire and number 6 to number 0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Features:

• Enclosure Type: Open
• Fused: Fused
• Amperage: 100.0
• Voltage: 600V AC
• Horsepower at 1 Phase: 25 hp at 208V
