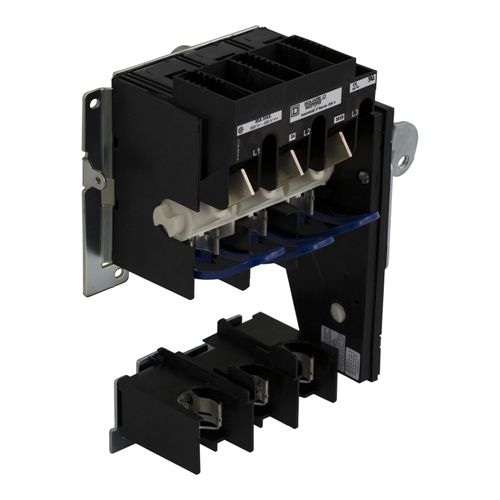

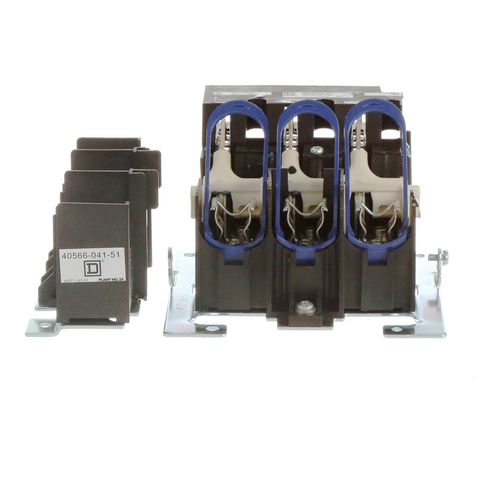

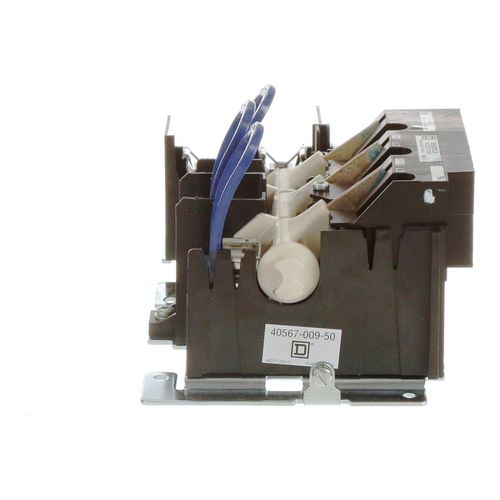

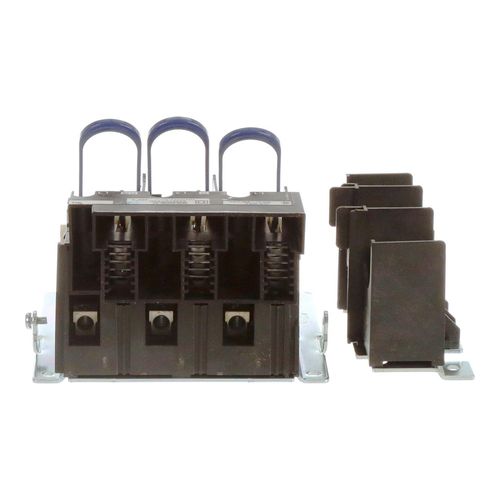

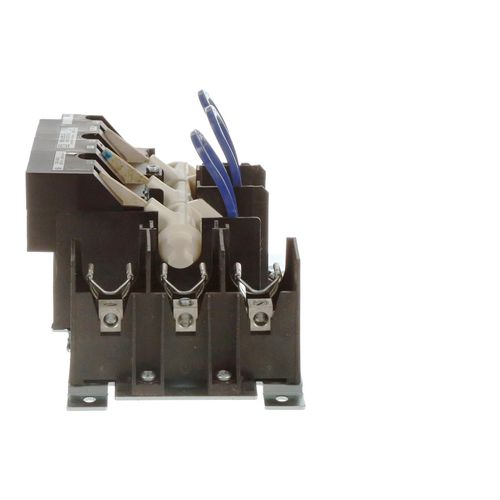

Flange Mounted Variable Depth Fusible Disconnect Switch & Operating Mechanism (30A, 600V), 9422TCF33

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 250 V and 30 Amps up to 600 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch lugs are rated for number 14 to number 2 AWG with copper wire and number 10 to number 2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Features:

• Enclosure Type: Open
• Fused: Fused
• Amperage: 30.0
• Voltage: 600Vac
• Horsepower at 1 Phase: 7-1/2 hp at 208V
