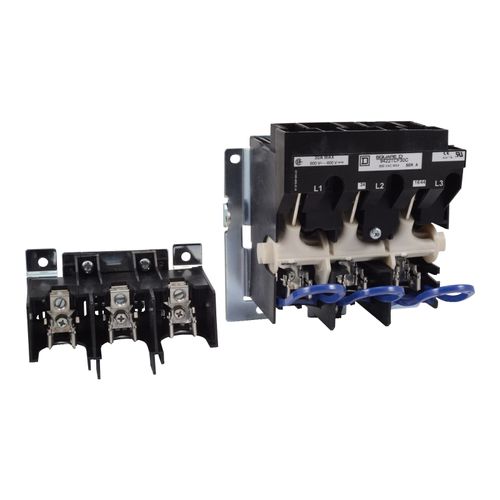

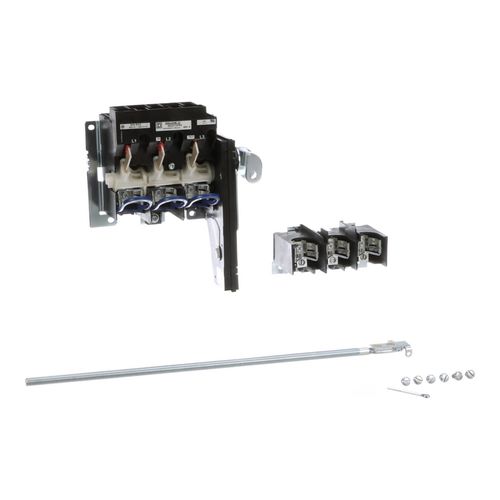

Flange Mounted Variable Depth Non-Fusible Disconnect Switch & Operating Mechanism (60A, 600V), 9422TDN60

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC and 30 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch lugs are rated for number 14 to number 2 AWG with copper wire and number 14 to number 2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Features:

• Enclosure Type: Open
• Fused: Non-Fused
• Amperage: 60.0
• Voltage: 600V AC
• Horsepower at 1 Phase: 15 hp at 208V
