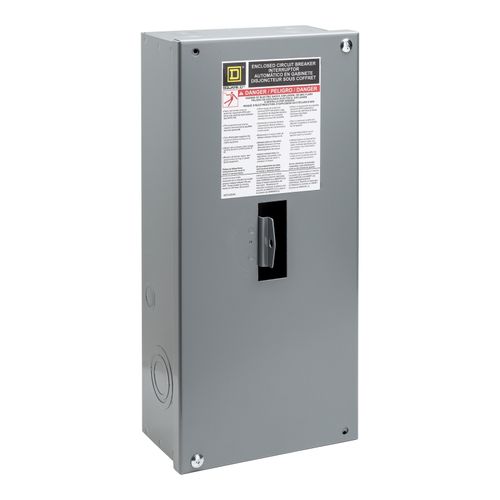

Circuit Breaker Enclosure, NEMA 1, Surface Mount, for PowerPacT H (15-100A, 3 Pole), HD100S

Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact H circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure accepts 3 pole PowerPacT H breakers that have a current rating of 15 to 100A. This enclosure is NEMA 1 rated enclosure and is surface mounted. The enclosure has a knockout that allows access to breaker front controls without opening enclosure. The short circuit current rating of the enclosure is equal to the rating of the circuit breaker installed which allow HD circuit breakers. The device has a height of 17 inch, width of 7.9 inch and depth of 4.75 inch. It is UL 489 Listed and CSA certified. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover

Features:

• Accessory Type: Enclosure
