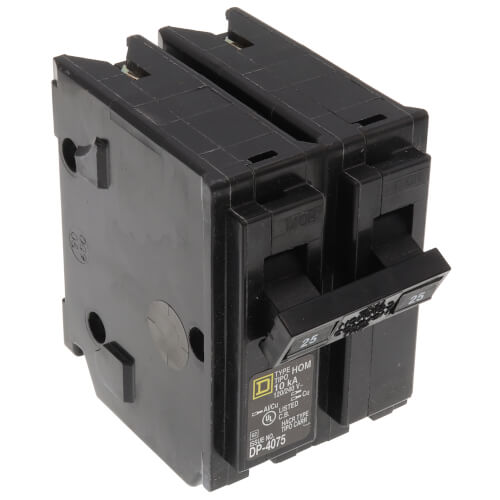

Homeline 2 Pole Miniature Circuit Breaker (120/240V, 25A)HOM225 Homeline 2 Pole Miniature Circuit Breaker (120/240V, 25A)
Free Shipping On orders over $99
Need replacement parts for this unit?
- Product: Miniature circuit breaker
- Range: Homeline
- Current Rating: 25A
- Certifications: UL listed
- Voltage Rating: 120/240V
- Mounting Type: Plug-in
- Number of Poles: 2P
- Short Circuit Current Rating: 10 kA
- Number of Spaces: 2
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Clamp terminal for 2 cables
- Wire Size: AWG 14...AWG 8 aluminium/copper)1 / AWG 14...AWG 10 copper)2
- Ambient air temperature for operation: 104 °F (40 °C)
- 10,000 AIR
