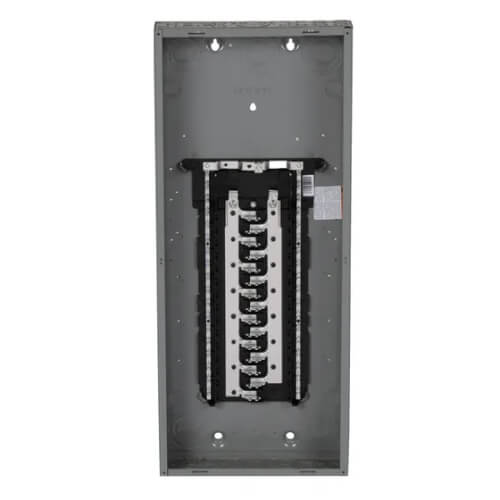

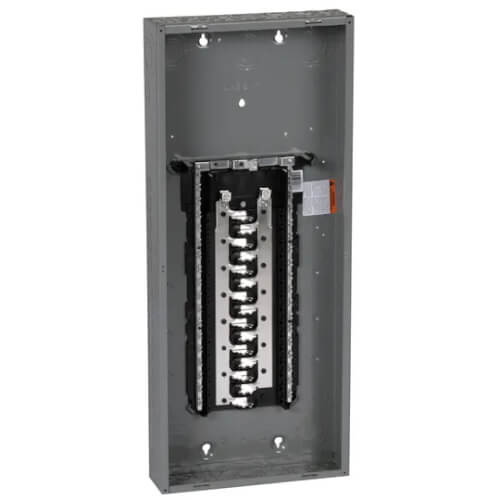

Homeline 30 Space, 60 Circuit Convertible Load Center w/ Main Lugs, Plug-on Neutral, 1 Phase, 120/240V (125A)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$384.97 each
Backorder
Get it Thu, Jul 23 - Thu, Aug 20
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
125 Amps
120/240V
Indoor Only
Gray
Description
–
Homeline 30 Space, 60 Circuit Convertible Load Center w/ Main Lugs, Plug-on Neutral, 1 Phase, 120/240V (125A)
Product Specifications:
Product Specifications:
- Product Type: Load Center
- Load Center Type: Main Lugs
- Rated Current: 125A
- Number of Spaces: 30
- Maximum Number of Single Pole Circuits: 60
- Enclosure Rating: NEMA 1 (Indoor)
- Cover Type: Combination Flush/Surface Cover
- Electrical Connection: Lugs
- Max Short Circuit Current Rating: 10 kA
- Maximum Number of Tandem Breakers: 30
- Number of Phases: 1
- Voltage Rating: 120/240 VAC
- Wire Size: AWG 6...AWG 2/0 aluminum/copper
- Ground Bar NOT included
- Wiring Configuration: 3 Wire
- Busbar Material: Tin plated aluminum busbar
- Enclosure Material: Welded Sheet Steel
- Surface Finish: Baked Enamel Gray
- Box Number: 10
- Ambient Air Temperature for Operation: 23 °F (-5 °C) - 104 °F (40 °C)
- UL listed file E-6294
Specs
–
| Product Type: | Load Center |
|---|---|
| Spaces: | 30 |
| Number of Circuits: | 60 |
| Current (amps): | 10 kA |
| Amperage: | 125 |
| Voltage: | 120/240V |
| Enclosure Type: | NEMA-1 |
| Installation Type: | Indoor Only |
| Phase: | 1 |
| Color: | Gray |
