Homeline 40 Space, 80 Circuit Convertible Load Center w/ Main Lugs, PoN w/ Ground Bar, Qwik-Grip 1 Phase (225A)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$717.54 each
Backorder
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
225 Amps
Indoor Only
120/240V
Gray
Description
–

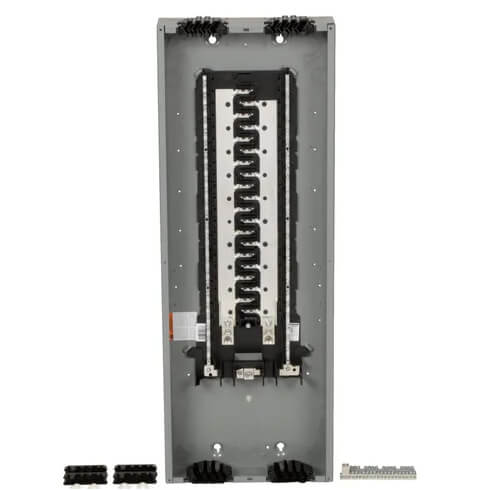

Homeline 40 Space, 80 Circuit Convertible Load Center w/ Main Lugs, PoN w/ Ground Bar, Qwik-Grip 1 Phase (225A)
Product Specifications:
Product Specifications:
- Product Type: Load Center
- Load Center Type: Main Lugs
- Rated Current: 225A
- Number of Spaces: 40
- Maximum Number of Single Pole Circuits: 80
- Enclosure Rating: NEMA 1 (Indoor)
- Cover Type: Combination Flush/Surface Cover
- Electrical Connection: Lugs
- Provided Equipment: (1) Grounding Bar, (1) Qwik grip assembly kit
- Max Short Circuit Current Rating: 10 kA
- Maximum Number of Tandem Breakers: 40
- Number of Phases: 1
- Voltage Rating: 120/240 VAC
- Wire Size: AWG 4...250 kcmil copper
- Ground Bar included (not installed)
- Wiring Configuration: 3 Wire
- Busbar Material: Tin plated aluminum busbar
- Enclosure Material: Welded Sheet Steel
- Surface Finish: Baked Enamel Gray
- Box Number: 12Q
- Ambient Air Temperature for Operation: 23 °F (-5 °C) - 104 °F (40 °C)
- UL listed file E-6294
Specs
–
| Product Type: | Load Center |
|---|---|
| Spaces: | 40 |
| Number of Circuits: | 80 |
| Current (amps): | 10 kA |
| Amperage: | 225 |
| Installation Type: | Indoor Only |
| Voltage: | 120/240V |
| Enclosure Type: | NEMA-1 |
| Phase: | 1 |
| Color: | Gray |
