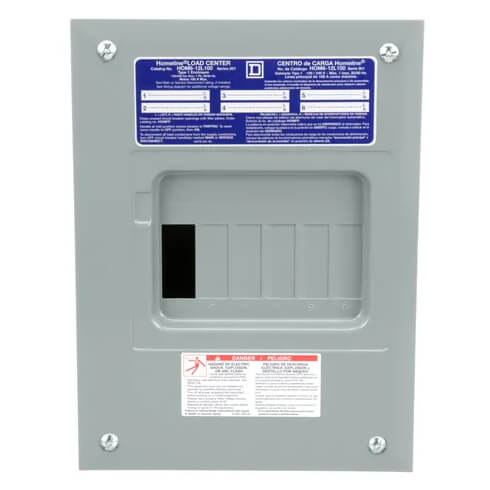

Main product image of Homeline 6 Space, 12 Circuit Load Center w/ Fixed Main Lugs & Flush Cover, 1 Phase, 120/240V (100A)
Magnifying glass
Hover image to zoom

Homeline 6 Space, 12 Circuit Load Center w/ Fixed Main Lugs & Flush Cover, 1 Phase, 120/240V (100A)

Brand:
Square D
SKU:
HOM612L100F
Rating:
(0)
Q&A:
(0)
Homeline 6 Space, 12 Circuit Load Center w/ Fixed Main Lugs & Flush Cover, 1 Phase, 120/240V (100A)
Magnifying glass
Hover image to zoom
$76.90 each
Backorder
Backorder
Get it Fri, Sep 11 - Fri, Oct 9

MANUALS (1)

Install Instructions
Install Instructions
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
100 Amps
Product Highlight: Installation Type
Indoor Only
Product Highlight: Voltage
120/240V
Product Highlight: Color
Gray

Description

–
Homeline 6 Space, 12 Circuit Load Center w/ Fixed Main Lugs & Flush Cover, 1 Phase, 120/240V (100A)

Product Specifications:
  • Product Type: Load Center
  • Load Center Type: Main Lugs
  • Rated Current: 100A
  • Number of Spaces: 6
  • Maximum Number of Single Pole Circuits: 12
  • Enclosure Rating: NEMA 1 (Indoor)
  • Cover Type: Flush Cover
  • Electrical Connection: Lugs
  • Max Short Circuit Current Rating: 10 kA
  • Maximum Number of Tandem Breakers: 6
  • Number of Phases: 1
  • Voltage Rating: 120/240 VAC
  • Wire Size: AWG 8...AWG 1 aluminum/copper
  • Wiring Configuration: 3 Wire
  • Busbar Material: Tin plated aluminum busbar
  • Enclosure Material: Welded Sheet Steel
  • Surface Finish: Baked Enamel Gray
  • Box Number: 4
  • Ambient Air Temperature for Operation: 23 °F (-5 °C) - 104 °F (40 °C)
  • UL listed file E-6294

Specs

–
Product Type:

Load Center

Spaces:

6

Number of Circuits:

12

Current (amps):

10 kA

Amperage:

100

Installation Type:

Indoor Only

Voltage:

120/240V

Enclosure Type:

NEMA-1

Phase:

1

Color:

Gray
