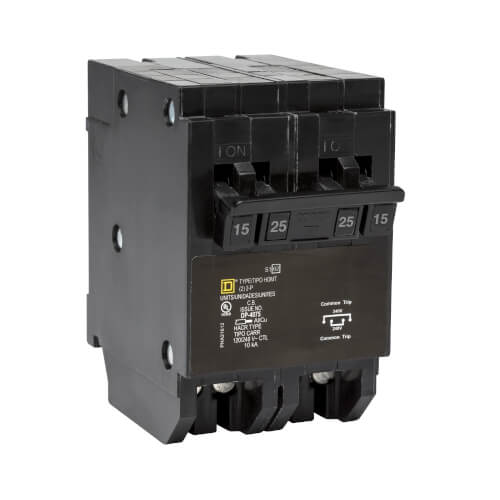

Homeline 2 Pole Miniature Tandem Circuit Breaker (120/240V, 15/25A)

The Square D by Schneider Electric Homeline 15/25 Amp Two-Pole Circuit Breaker is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.

• Product: Miniature circuit-breaker
• Range: Homeline
• Current Rating: 15 A & 25 A
• Certifications: UL listed
• Voltage Rating: 120/240 V AC
• Mounting Type: Plug-in
• Number of Poles: 2P
• Short Circuit Current Rating: 10 kA
• Number of Spaces: 2
• Circuit Breaker Type: Quad tandem
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Wire Size: AWG 14...AWG 8 aluminium/copper)1
