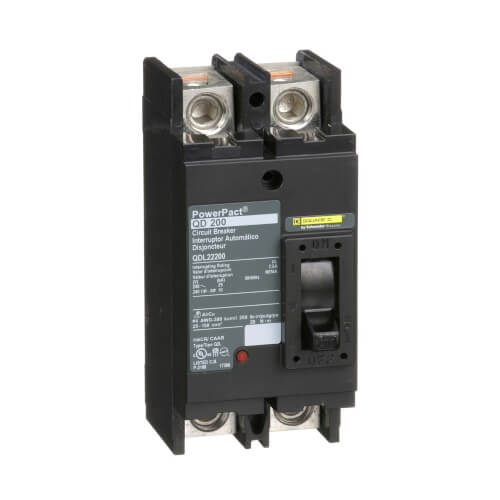

PowerPact Q-Frame 2 Pole Molded Case Circuit Breaker (240V, 200A, 25kA)

The PowerPact Q-frame line of circuit breakers includes QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line™ group-mounted construction.

Specifications

• Line Rated Current: 200 A
• (Ue) Rated Operational Voltage: 240 VAC
• Number of Poles: 2
• Breaking capacity: 25 kA
• Continuous Current Rating: 80%
• Breaking Capacity Mode: D
• Mounting Mode: Unit Mount
• Electrical Connection: Lugs load AWG 4...300 kcmil aluminium/copper, Lugs line AWG 4...300 kcmil aluminium/copper
• Magnetic Hold current: 1200A
• Magnetic Tripping Current: 2400A
• Tightening Torque: 247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) AWG 4...300 kcmil)
