Description
Note: Image may not reflect actual product

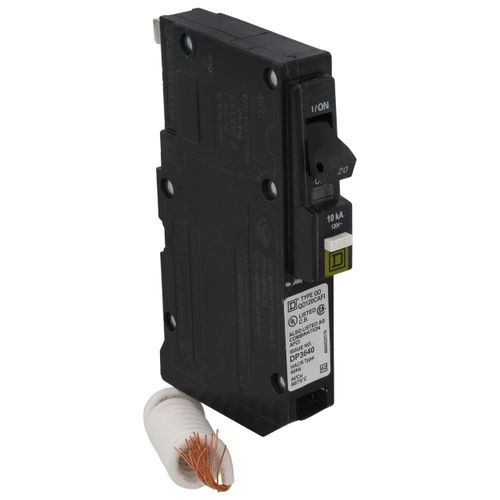

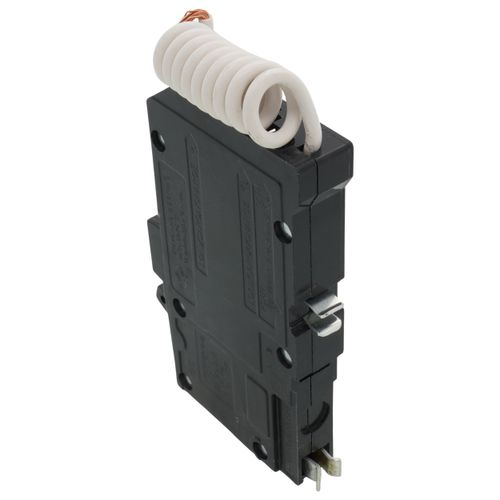

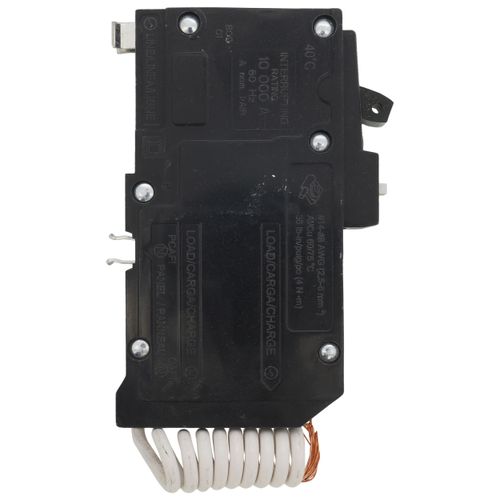

The Square D QO Single Pole Combination Arc Fault Detection Circuit Breaker by Schneider Electric is for use to help protect your wires from arcing faults and is intended for overload and short-circuits protection of your electrical system. All QO circuit breakers are equipped with the exclusive Visit-Trip indicator. When a QO Visit-Trip circuit breaker trips, the handle snaps to a midpoint position between in. OFF in. and ON in. and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
Specifications
The Square D QO Single Pole Combination Arc Fault Detection Circuit Breaker by Schneider Electric is for use to help protect your wires from arcing faults and is intended for overload and short-circuits protection of your electrical system. All QO circuit breakers are equipped with the exclusive Visit-Trip indicator. When a QO Visit-Trip circuit breaker trips, the handle snaps to a midpoint position between in. OFF in. and ON in. and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
Specifications
- Product: Arc Fault Detection Circuit Breaker
- Range: QO
- Current Rating: 20A
- Certifications: UL listed / CSA
- Voltage Rating: 120/240 / 120
- Inturrupt Rating: 10 kA 120/240 V AC 50/60 Hz / 10 kA 120 V AC 50/60 Hz
- Mounting Type: Plug-in
- Number of Poles: 1
- Number of Panel Spaces: 1
- Ratings: HACR rated
- Electrical Connection: Pressure plate
- Wire Size: AWG 14...AWG 8 copper / AWG 12...AWG 8 aluminium
- Ambient air temperature for operation: 104 °F (40 °C)
- 10,000 AIR
