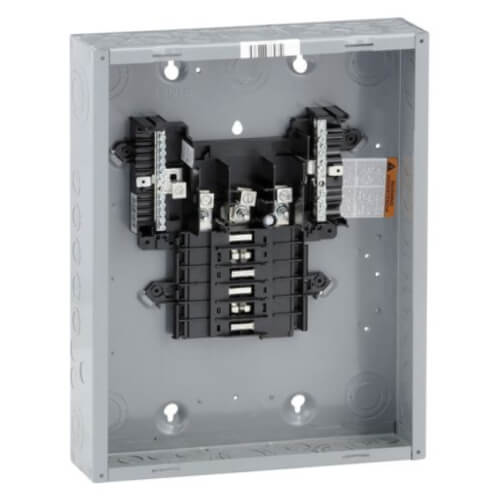

QO 12 Space, 12 Circuit Load Center w/ Main Lugs & Ground Bar, 3 Phase 120/240V (125A)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$174.27 each
Backorder
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120/240V
125 Amps
Indoor Only
Gray
18 Month Warranty
Description
–
QO 12 Space, 12 Circuit Load Center w/ Main Lugs & Ground Bar, 3 Phase 120/240V (125A)
Product Specifications:
Product Specifications:
- Product Type: Load Center
- Cover Type: Order separately
- Load Center Type: Main lugs
- Rated Current: 125 A
- Number of Spaces: 12
- Max Short Circuit Current Rating: 65 kA
- Maximum Number of Single Pole Circuits: 12
- Maximum Number of Tandem Breakers: 0
- Number of Phases: 3 phase
- Voltage Rating:
- 208Y/120 V AC
- 240/120 V delta AC
- 240 V delta AC
- Wire Size: AWG 6...AWG 2/0 aluminium/copper
- Electrical Connection: Lugs
- Wiring Configuration: 3-wire, 4-wire
- Busbar Material: Tin plated copper busbar
- Enclosure Material: Welded sheet steel
- Surface Finish: Baked enamel Gray
- Enclosure Rating: NEMA 1 indoor
- Ground Bar: Included
- Warranty: 18 Months
Specs
–
| Product Type: | Load Center |
|---|---|
| Current (amps): | 65 kA |
| Spaces: | 12 |
| Number of Circuits: | 12 |
| Voltage: | 120/240V |
| Phase: | 3 |
| Amperage: | 125 |
| Installation Type: | Indoor Only |
| Enclosure Type: | NEMA-1 |
| Color: | Gray |
| Warranty: | 18 Month |
