Description

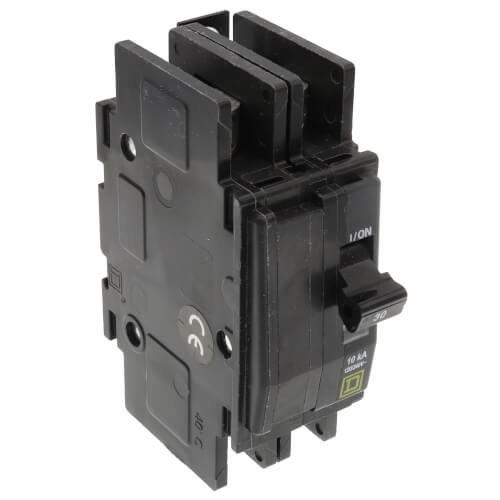

QOU miniature circuit breakers and switches are available for surface-, flush-, or DIN rail mounted applications in one-, two-, and three-pole constructions. QOU miniature circuit breakers are used for overcurrent protection and switching on both ac and dc electrical systems.

Specifications
  • Product or Component Type: Miniature circuit-breaker
  • Range of Product: QOU
  • Circuit Breaker Type: Standard
  • Circuit Breaker Application: HACR and Switching Duty Rated
  • Line Rated Current: 30A
  • Number of Poles: 2P
  • Interrupt Rating: 10 kA 120/240 V AC, 10 kA 120 V AC, 5 kA 48 V DC
  • Electrical Connection: Slotted box lugs, line side; Slotted box lugs, load side
  • [Ue] Rated Operational Voltage: 120/240 V AC, 120 V AC, 48 V DC
  • Mounting Mode: Unit Mount
  • AWG Gauge: AWG 14...AWG 2 Aluminium/Copper
  • Tightening Torque: 5.08 N.m (45 lbf.in) AWG 14...AWG 2)
  • Product Certifications: UL listed, CSA, IEC
  • Warranty: 18 Months
Hide Description
Manuals (1)
Specs
Product Type:

Circuit Breaker

Poles:

2

Amperage:

30

Features:

Overload Protection

Short-Circuit Protection

Voltage:

120/240v

Warranty:

18 Months

×
