$495.66 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
4-3/4"
Auto, 2° to 42°F
5 Amps
24V
7/8" Depth
20/260v
Description
–

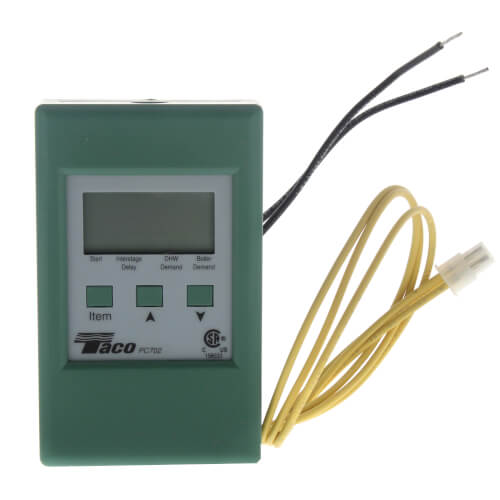

Taco's PC702 Two-Stage Reset Control is a microprocessor-based control designed to regulate the supply water temperature from a two-stage boiler system based on the outdoor temperature or domestic hot water requirements.
The PC702 offers all the feature of the PC700 and in addition includes an adjustable interstage relay setting, boiler staging using proportional, integral and derivative (PID) logic, optional boiler rotation and a domestic hot water demand output.
The PC702 offers all the feature of the PC700 and in addition includes an adjustable interstage relay setting, boiler staging using proportional, integral and derivative (PID) logic, optional boiler rotation and a domestic hot water demand output.
Specs
–
| Application: | Boiler Reset |
|---|---|
| Power Supply: | 24 VAC 3VA (Powered by EXP Control) |
| Width: | 2-7/8" |
| Sensor Type: | 1 Outdoor Air and 1 Supply Water |
| Height: | 4-3/4" |
| Boiler Start: | 35 to 150°F |
| Outdoor Start: | 35 to 85°F |
| Boiler Design Temp: | 70 to 220°F |
| Outdoor Design Temp: | -60 to 32°F |
| Boiler Min. Control Temp: | Off, 80 to 180°F |
| Differential: | Auto, 2° to 42°F |
| Warm Weather Shutoff Temp: | Off, 35 F to 100 F |
| DHW Demand Input: | 20 to 260 V (ac) 2 VA |
| Interstage Delay: | 0:30 to 4:00 minutes |
| Amperage: | 5 |
| Power Method: | 24V |
| Depth (Inches): | 7/8" |
| Voltage: | 20/260v |
| Ambient Conditions: | Indoor use Only: 32°-105°F < 90% RH non-condensing |
| Relays: | 120 V (ac) 5 A 1/6 hp pilot duty 240 VA |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4 out of 2 reviews
100% would recommend this product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
I am happy with this control
Replaced an old pump control panel and added this rest control to the new panel.
Everything is working well. No installation problems.
JPM
Detroit, Michigan
6 years ago
Verified Buyer
Was this review helpful to you?
Somewhat hard to install, but works well
This device does exactly what it's supposed to do, and is pretty easy to configure and troubleshoot. My only complaint is that the wiring blocks for the low-voltage wiring (boiler switches, temperature sensors) are difficult to use, as they are on the edge of the device behind a cover. This requires bringing wires in from the back, then turning them 90 degrees to place them into the small holes which you can't see. If Taco redesigned this to use split terminal blocks, so you could remove the upper section to attach the wires and then plug it back into the board, it would be much easier to install.
kpfleming
Pelham, NY
10 years ago
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: I have two-Five ton Geothermal Heat pumps piped in parallel via a common manifold, heating Radiant floors. Do you think the PC702 2-Stage Boiler Reset Control Connected to EXP Switching Relay could help regulate water temperatures from 2 GEO systems? Max water temp is around 125F. I only need to run both units about 10% of the time.
Asked by Ted 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe don't see why not. You can program it to stage the boilers to fire as you want them to.
Was this review helpful to you?
