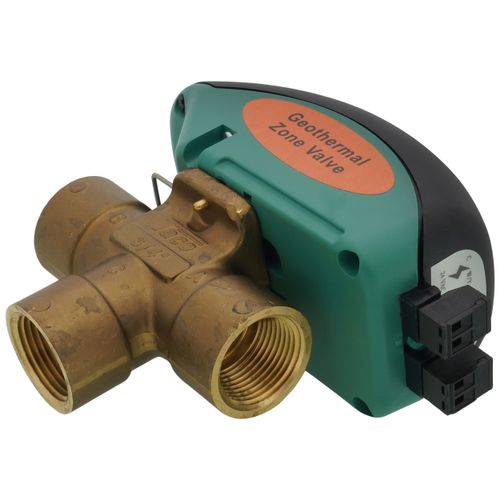

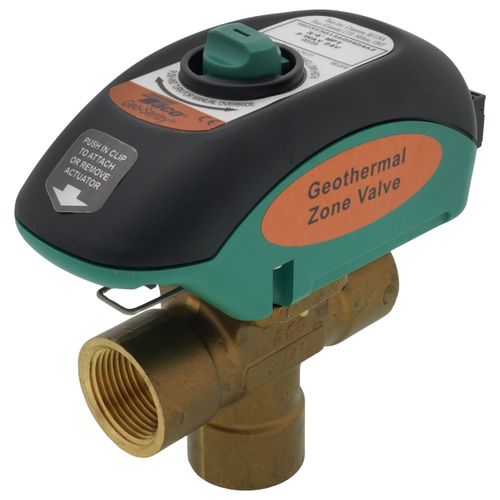

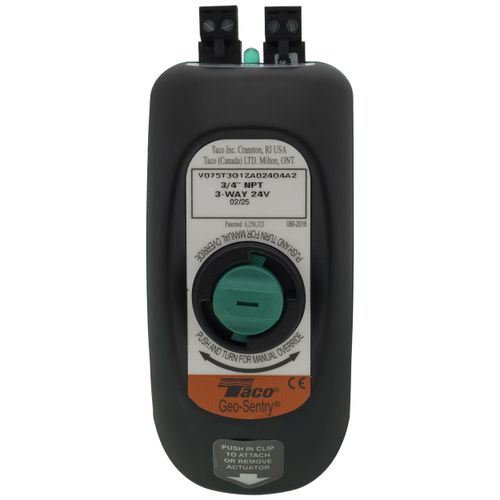

3/4" 3-Way Geo-Sentry GeoThermal Zone Valve - Threaded, Normally Closed
Hover image to zoom

3/4" 3-Way Geo-Sentry GeoThermal Zone Valve - Threaded, Normally Closed

Brand:
Taco
SKU:
V075T3G1ZA024Q4A2
Rating:
(0)
Q&A:
(0)
3/4" 3-Way Geo-Sentry GeoThermal Zone Valve - Threaded, Normally Closed
Hover image to zoom
V075T3G1ZA024Q4A2 is temporarily unavailable
Unavailable Date August 29, 2023
This product is on backorder until further notice.

Product Highlights

Body Pattern icon
3-Way
Connection Type icon
Threaded Connection
Flow Capacity (Cv) icon
3.3 Cv
Size icon
3/4"
Voltage icon
24v
Position icon
Normally Closed

Description

The Taco Geo-Sentry® Zone Valve enhances the overall performance of any geothermal system. The unique patented technology in the Geo-Sentry® utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a geothermal zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoff pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40VA transformer. The Taco Geo-Sentry® zone valves are available in sweat, threaded and 3-way configurations.

Features
  • Up to 93% less energy usage
  • Universal Installation Orientation
  • Usable on Condensing Chilled Water Installations
  • 12 valves on one 40VA transformer
  • Multi-Function LED
  • Quick Connect Wiring
  • 125 PSI Shut-off
  • Push button actuator replacement
  • Easy wire quick connections Manual override button
  • Positional indicator

Specs

Application:

Zoning

Voltage:

24v

Position:

Normally Closed

Size:

3/4"

Connection Type:

Threaded

Close Off Pressure:

125 psi

Max Pressure (PSI):

300

Body Pattern:

3-Way

Flow Capacity (Cv):

3.3

End Switch:

Yes
