Product Highlights
–
2-7/8"
250v, 120v
2" Depth
Description
–

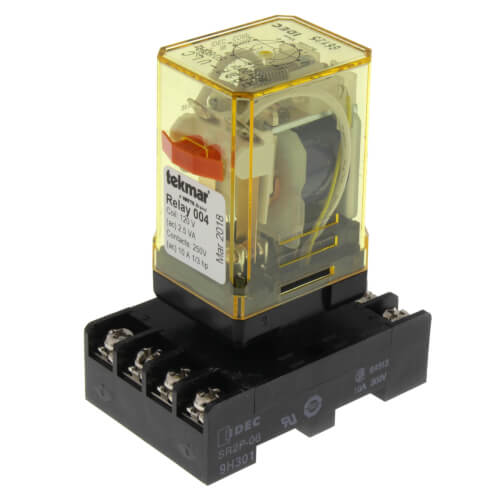

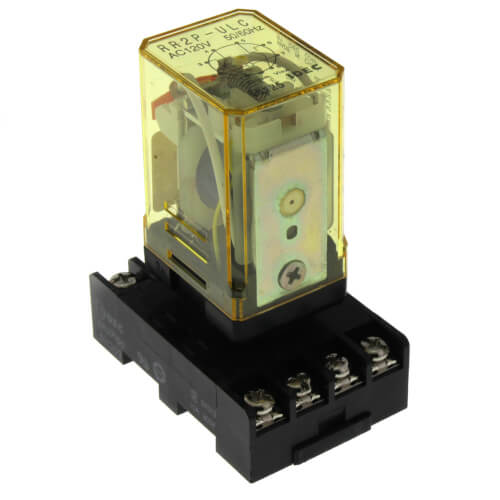

The tekmar relays 003 and 004 are pin configured to all tekmar application drawings for ease of installation. The relays are easily serviced by unplugging them from their sockets without touching the wiring. Each relay comes with a mechanical test button for ease of troubleshooting.
- Literature: D 003
- Packaged Weight: 2.60 lb. (1.2 kg), 9 to a box
- Dimensions: 2-7/8" H x 1-9/16" W x 2" D (73 x 40 x 51 mm)
- Approvals: CSA C US, UL listed
- Ambient Conditions: Indoor use only, 14 to 104+F (-10 to 40+C), < 85% RH non-condensing
- Power Supply (coil): 120 V (ac) +10%, -20%, 50/60 Hz, 3 VA
- Relay Contacts (max.): 10 A resistive 10 A inductive @ 120 V (ac), 1/3 hp, 10 A resistive 7 A inductive @ 250 V (ac), 10 A resistive 2 A inductive @ 28 V (dc)
- Relay Contacts (min.): 10 mA 1 V (dc)
Specs
–
| Type: | Relay |
|---|---|
| Width: | 1-9/16" |
| Height: | 2-7/8" |
| User Interface: | Push Button |
| Application: | Heating |
| Voltage: | 250v 120v |
| Hertz: | 50 60 |
| Depth (Inches): | 2" |
| Ambient Conditions: | Indoor Only: 14°-104°F <85% RH Non-Condensing |
| Power Supply: | 120V (ac) |
| Relays: | Contacts:10A resistive 10A inductive at 120Vac 10A resistive 7A inductive at 250Vac |
| Contact Ratings: | 7 A Resistive @ 250 VAC (General Use) 10 A Resistive @ 30 VAC (DC) 10 A Resistive @ 250 VAC (AC) |
| Weight (lbs): | 2.6 lbs |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.33 out of 3 reviews
100% would recommend this product
5 star
67%
4 star
0%
3 star
33%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Good product
This was just the right part and the right price.
Aaron
NY
8 years ago
Verified Buyer
Was this review helpful to you?
Control the boiler loop circulator during a DHW call
The Tekmar 402 house controller is a great product. One of its only shortfalls is that it does not allow you to run indirect hot water either as a zone (where the boiler circulator also must always be running)or an independent loop (where the boiler loop circulator should be shut off during a DHW call). I activate this relay with the DHW circulator output from the 402, and then apply line voltage to the boiler loop circulator with the relay closure. The output from the relay is combined with the boiler output from the Teekmar 402, effectively "or'ing" the DHW call with the boiler circulator switch from the 402. This wiring assures that the boiler circulator is on when there is a DHW call and when there is other heating demand.
Magic Hands
Saratoga, New York
11 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Its a relay
Needed an interposing relay to bump down from line level voltage. Relay works as intended.
boilerbum
upstate ny
14 years ago
Verified Buyer
Was this review helpful to you?
