$344.00 each
In Stock
Get 2 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5-3/8" Width
3-5/8"
9/16" Depth
Description
–

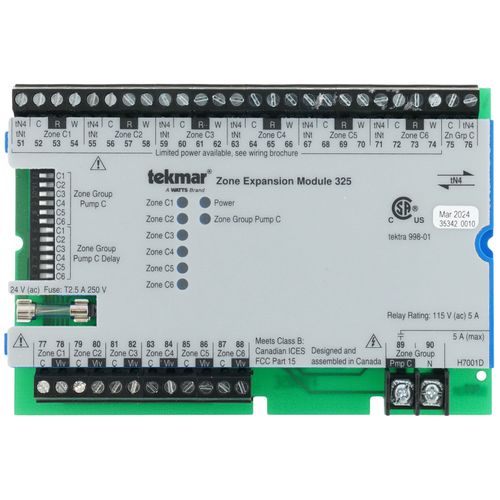

Control Description: The Zone Expansion Manager 325 is designed to simplify the wiring between tN4 thermostats and zone valves. The 325 has an internal transformer that supplies power to the tekmarNet+4 (tN4) thermostats and connected zone valves. Control + Microprocessor PID control; This is not a safety (limit) control Packaged Weight + 2.95 lb. (1338 g) Dimensions + 3-5/8" H x 5-3/8" W x 9/16" D (92 x 137 x 14 mm) Approvals + CSA C US, CSA/UL 61010-1, meets Class B: ICES and FCC Part 15 Ambient Conditions + Indoor use only, 32 to 122+F (0 to 50+C); RH equal to or less than 80% to 88+F (31+C), down to 50% from 104 to 122+F (40 to 50+C); Altitude <2000 m, Installation Category II, Pollution Category 2 Power Supply + Provided by interconnected Zone Manager Transformer + 24 V (ac) 8 VA Maximum Zone Group Pump C Relay + 0-10 V Minimum 2500 Ω Combined Relay Load + 115 V (ac) 5 A 1/4 hp, pilot duty 240 VA
Specs
–
| Application: | Zoning |
|---|---|
| Width (Inches): | 5-3/8" |
| Height: | 3-5/8" |
| User Interface: | DIP Switch |
| Depth (Inches): | 9/16" |
| Ambient Conditions: | Indoor Only: 32°-122°F RH equal to or less than 80% to 88F;50% from 104-122F Altitude<2000m |
| Power Supply: | From Interconnected Zone Manager |
| Relays: | 115 V (ac) 5 A-1/4 hp- pilot duty 240 VA |
| Type: | 6 Zone Valves |
| Weight (lbs): | 2.95 lbs |
| Transformer: | 24 V (ac) 8 VA Maximum |
| Zone Group Pump C Relay: | 0-10 V Minimum 2500 ohms |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Q&A
2 Questions2 Questions
Q: I have a boiler heat system that use transformer and relays. always having trouble with the relays. is this something I can replace this old system with. currently I have five zones it would control.
Asked by Ron 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis would be an option for a system using zone valves for zoning. If there are circulator pumps and switching relays in place, this would not be compatible.
Was this review helpful to you?
Q: Will this work with the Teckmar tn2 313 or 315?
Asked by Chris 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo it will not, works with the TN4 models.
Was this review helpful to you?
