Zone Manager, tN2 - Four Zones

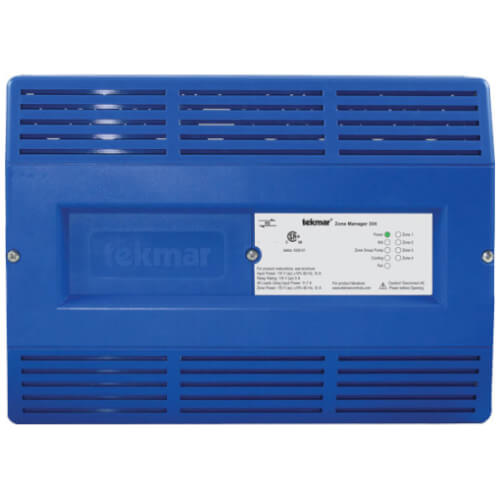

The tekmarNet® 2 Zone Manager 334 is designed to provide a zoning solution for 2-wire tekmarNet® 2 thermostats used in heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This control energizes up to 4 zone valves or zone pumps. It is capable of providing power for up to 4 tekmarNet® 2 thermostats and energizing their respective 24 V (ac) or 115 V (ac) zones, as well as providing a powered Zone Group Pump (powered end switch) contact to enable an external device such as a manifold pump.

Features:

• CSA C US Certified for use in USA and Canada
• For use with tekmarNet® 2 thermostats ONLY
• Four zone valves or zone pumps
• Only requires 2 wires per zone
• Provides power to tekmarNet® 4 Reset Module
• Time delay for thermal motor zone valves
• tekmarNet® 4 compatible

Specifications:

Control: Microprocessor control. This is not a safety (limit) control

Packaged weight: 4.9 lb. (2220 g)

Dimensions: 3-5/8" H x 5-3/8" W x 9/16" D (92 x 137 x 14 mm)

Enclosure: Blue PC+ABS plastic with metal top and bottom conduit connection walls, NEMA type 1

Approvals: CSA C US, meets Class B: ICES & FCC Part 15

Power supply: 115 V (ac) +/- 10%, 60 Hz, 12 A max

Combined load: All loads using input power 11.7A max

Zone power: 115 V (ac) +/- 10%, 60 Hz, 12 A max

Zone group pump relay: 115 V (ac) 5 A

Zone relays: 115 V (ac) 5 A

Transformer power available: 24 V (ac) 17 VA, fuse T1.25 A 250 V

Cool and fan relays: 24 V (ac) 2 A

Warranty: Limited 3 Year Warranty
