Description

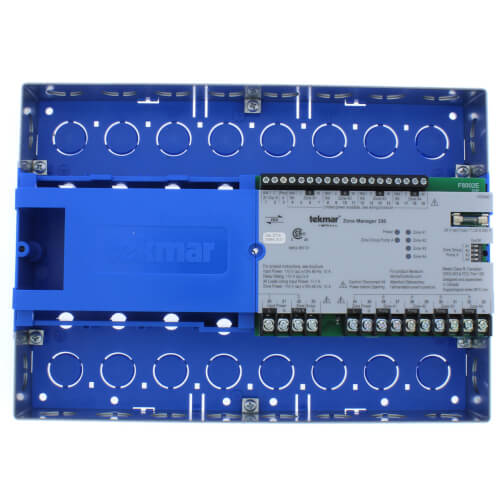

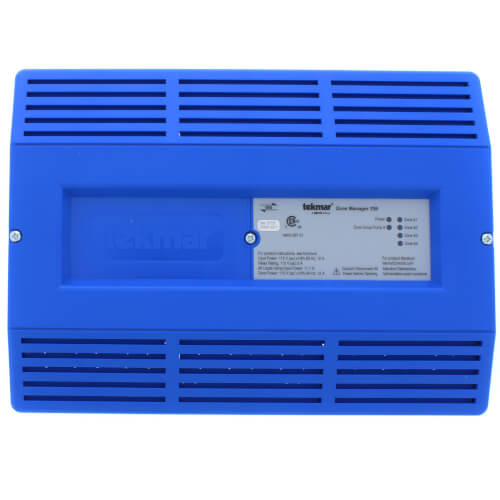

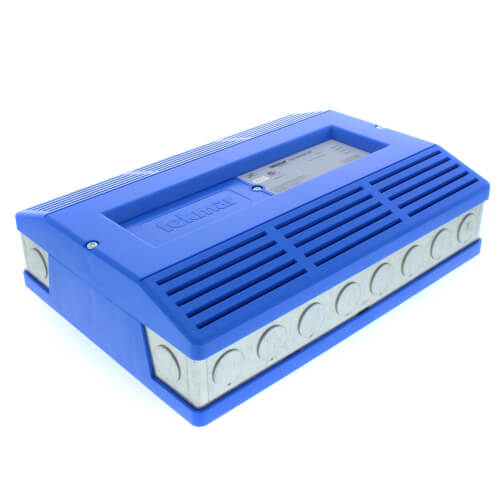

Control Description: The Zone Manager 336 is designed to simplify the wiring between tN4 thermostats and zone pumps. The 336 has an internal transformer that supplies power to the tekmarNet+4 (tN4) thermostats. Control + Microprocessor PID control; This is not a safety (limit) control Packaged Weight + 4.9 lb. (2223 g) Enclosure + L enclosure, blue ABS 94V-0 plastic with metal top and bottom conduit connection walls Dimensions + 8-1/16" H x 11-1/8" W x 2-15/16" D (204 x 282 x 74 mm) Approvals + CSA C US, CSA/UL 61010-1, meets Class B: ICES and FCC Part 15 Ambient Conditions + Indoor use only, 32 to 122+F (0 to 50+C) ; RH equal to or less than 80% to 88+F (31+C), down to 50% from 104 to 122+F (40 to 50+C) ; Altitude <2000 m, Installation Category II, Pollution Category 2 Power Supply + 115 V (ac) +/- 10% 60 Hz 12 A Transformer Power Available + 24 V (ac) 24 VA, fuse T1.25 A 250 V Zone Group Pump A Relay + 115 V (ac) 5 A 1/3 hp, pilot duty 240 VA Zone Pump Relays + 115 V (ac) 5 A 1/3 hp, pilot duty 240 VA Combined Load on Input Power + 11.7 A Maximum Combined Load on Zone Power + 12 A Maximum Group Pump A Demand + 24 V (ac) < 0.1 VA
Read more
Specs
Application:
Zoning
Type:
4 Zone Pumps
Width (Inches):
11-1/8"
Height:
8-1/16"
User Interface:
DIP Switch
Depth (Inches):
2-15/16"
Ambient Conditions:
Indoor Only: 36°-117°F 92% RH up to 104F 50% RH if >104F Altitude<2000m
Power Supply:
115V (ac)
Relays:
115 V (ac) +/- 10% 60 Hz 10 A
115 V (ac) 5 A - 1/4 hp - 240 VA Pilot Duty
Weight (lbs):
4.9 lbs
Transformer Power:
24 V (ac) 24 VA
Fuse T1.25 A 250 V
Zone Pump Relays:
115 V (ac) 5 A - 1/3 hp - 240 VA Pilot Duty
Zone Group Pump A Relay:
115 V (ac) 5 A - 1/3 hp - 240 VA Pilot Duty
Input:
11.7 A Max
Demands:
24 V (ac) < 0.1 VA
Enclosure Type:
L
×
