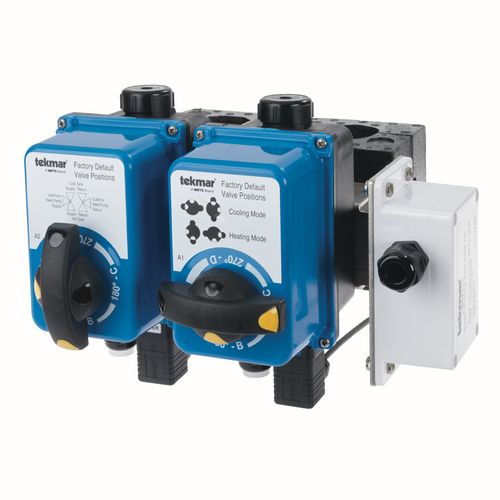

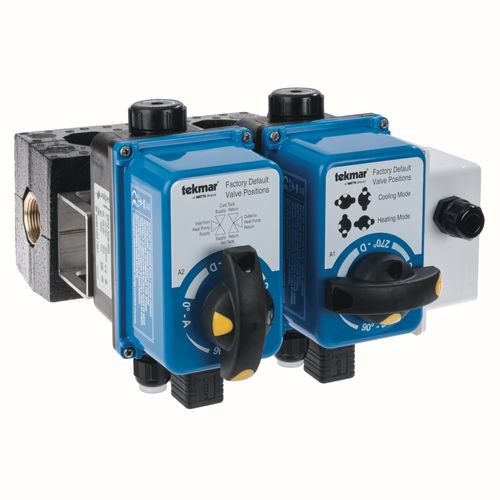

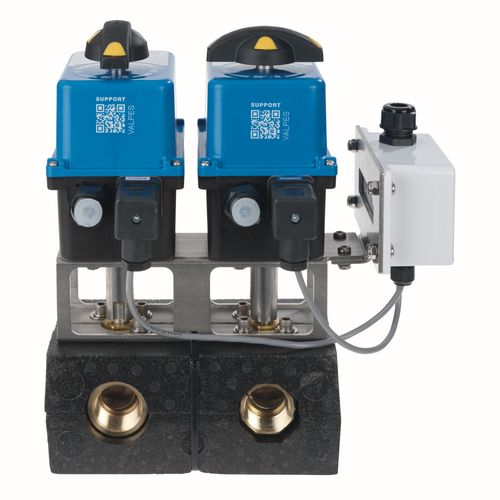

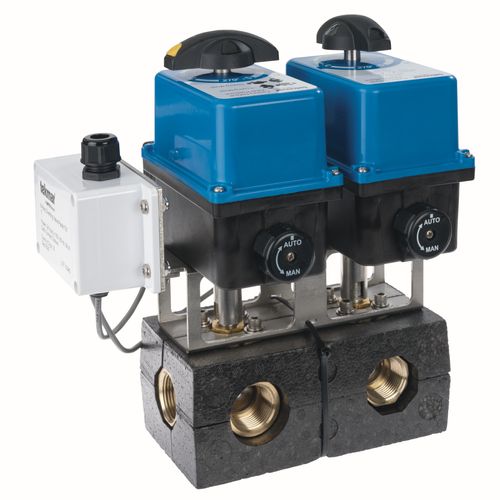

1" Brass 6-Way Diverting Valve Panel, Insulated

The 6-way Diverting Valve Panel 731 operates dual 3-way valves with actuators to divert water between hot and chilled water tanks in 4-pipe configuration heat pump systems. The assembly features 1-inch female NPT threads and comes pre-insulated to prevent sweating. A built-in relay synchronizes the valves for efficient operation and can be reversed if the piping direction is installed inversely.

Features:

• Designed to work with 4-pipe heat pump systems
• 1 inch connection size
• Brass construction to resist corrosion
• Valves are insulated to prevent sweating
• Relay logic can be reversed in case of inverse installation in the field
• CV rating of 21 GPM

Specifications:

• Actuator Rated Torque: 7.3 ft-lbs (10 Nm)
• Ambient Conditions: Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), less than 90 percent RH non-condensing
• Connection Size: 1 IN
• Connection Type: Female Threaded
• Control Signal Input: 24V (ac), floating action
• Dimensions: 11.5 IN H x 10.7 IN W x 7.5 IN D (292 x 272 x 191 mm)
• DivertingValveType: 3-Way
• Enclosure Material: ABS plastic
• Enclosure NEMA Rating: NEMA 1
• Markets: Commercial Buildings with BAS, Multifamily Homes, Single-Family Homes, Small Commercial Buildings
• ModularPanelType: 6-Way
• Motor Speed: 11s (1/4 turn)
• Power Supply: 24V (ac) plus/minus 10 percent, 60 Hz
• SoundLevel-dB: 61.00
• System: 2 Valve Panel
• Thread Type: NPT
• Valve CV: 21.00
