Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

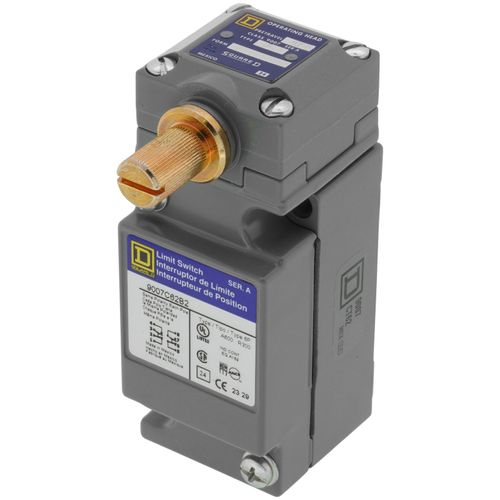

Schneider Electric / Square D 9007C62B2 Limit Switch; 2NO-2NC, 10 Degree Pre-Travel, Spring Return
Specifications:
Schneider Electric / Square D 9007C62B2 Limit Switch; 2NO-2NC, 10 Degree Pre-Travel, Spring Return
Specifications:
- Limit Switch Style: Heavy Duty Limit Switch
- Basic Actuator Style - Limit Switch: Rotary
- Actuator Style - Limit Switch: Rotary, No Lever
- Actuator Location - Limit Switch: Side
- Item: Heavy Duty Limit Switch
- AC Contact Rating - Limit Switch: 10A @ 600V
- DC Contact Rating - Limit Switch: 10A @ 600V
- Contact Form - Switches: 2NC/2NO
- Body Height - Limit Switch: 2.50"
- Body Width - Limit Switch: 0.83"
- Body Depth - Limit Switch: 1.14"
- Boot Sealed Actuator - Limit Switch: No
- Threaded for Panel Mounting - Limit Switch: No
- Body Style - Limit Switch: Miniature
- NEMA Rating: 1, 2, 4, 6, 6P, 12, 13
- Wiring Entry: 1/2" NPT
- Electrical Connection: Screw Terminals
- IP Rating: 67
- Movement: CW, CCW
- Travel: Total Travel 90 Degrees
- Series: 9007C
- Operating Temp. Range: -20 Degrees to 185 Degrees F
- Body Material: Zinc
- Operating Force: 4.00 in.-lb
- Standards: UL, CSA, CE
