Heavy Duty Limit Switch (240V, 10A)

Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

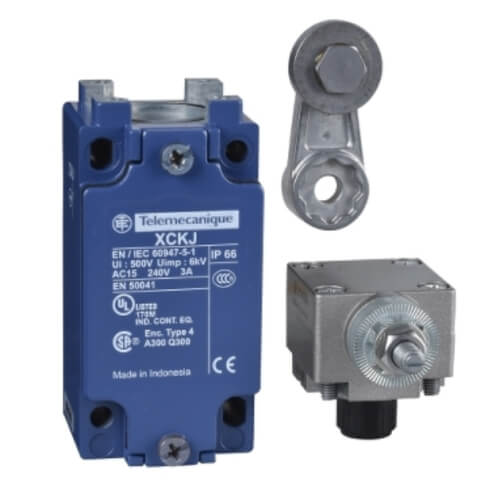

Note: Image may not be exact representation of item.

Schneider Electric / Square D OsiSense® 2-Pole Limit switch has the voltage rating of 240 VAC/250 VDC and the current rating 10 Amps. It features zinc alloy body construction for enhanced durability and strength. It uses a spring return roller lever thermoplastic actuator with rotary head for controlled operation. It measures 1.570 Inch x 1.730 Inch x 3.030 Inch. Limit switch has screw clamp terminals with one cable entry tapped for 1/2-Inch NPT cable gland for electrical connection. It has 1 NO/1 NC contact configuration that offers snap action. It offers short circuit protection at 10 Amps using gG cartridge fuse.

Limit switch has the rated operational current rating of 3 Amps at 240 VAC and 0.27 Amps at 250 VDC. It has the rated insulation voltage rating of 300/500 Volts and the rated impulse withstand voltage rating of 6 kilo-Volts. It operates at 4.92 feet/second maximum actuation speed and produces 5000000 maximum switching frequency cycles at 0.5 load factor for delivering maximum electrical durability. It has the operating temperature ranging from -13 to 158 deg F and the storage temperature ranging from -40 to 158 deg F. It is ideal for using in heavy-duty applications. It uses NEMA 1/2/4/12 IP 66 enclosure for optimum safety. Limit switch is UL listed/CE marked and CSA certified.

Specifications:

• Limit Switch Style: Heavy Duty Limit Switch
• Basic Actuator Style - Limit Switch: Rotary
• Actuator Style - Limit Switch: Rotary, Roller Lever
• Actuator Location - Limit Switch: Side
• Item: Heavy Duty Limit Switch
• AC Contact Rating - Limit Switch: 10A @ 240V
• DC Contact Rating - Limit Switch: 10A @ 240V
• Contact Form- Switches: 1NC/1NO
• Actuator Length - Limit Switch 1.61"
• Body Height - Limit Switch: 4.01"
• Body Width - Limit Switch: 1.57"
• Body Depth - Limit Switch: 2.36"
• Boot Sealed Actuator - Limit Switch: No
• Threaded for Panel Mounting - Limit Switch: No
• Body Style - Limit Switch: Standard
• NEMA Rating: 1, 2, 4, 12, 13
• Wiring Entry: 1/2" NPT
• Electrical Connection: Screw Terminals
• IP Rating: 66
• Movement: CW, CCW
• Travel: Total Travel 90 Degrees
• Series: XCKJ
• Operating Temp. Range: -13 Degrees to 158 Degrees F
• Roller Material: Thermoplastic
• Roller Dia.: 0.87"
• Roller Width: 0.20"
• Body Material: Zinc
• Operating Force: 2.21 in.-lb
• Standards: UL, CSA, CE
