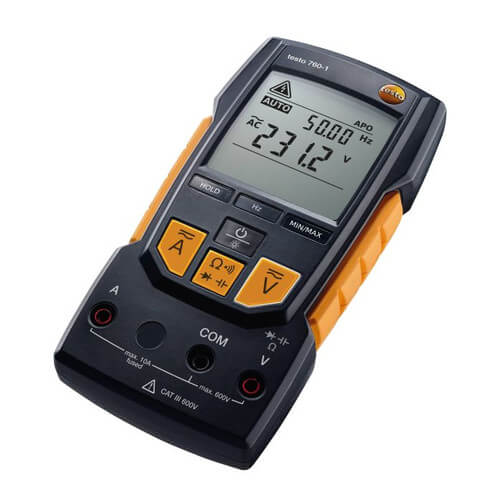

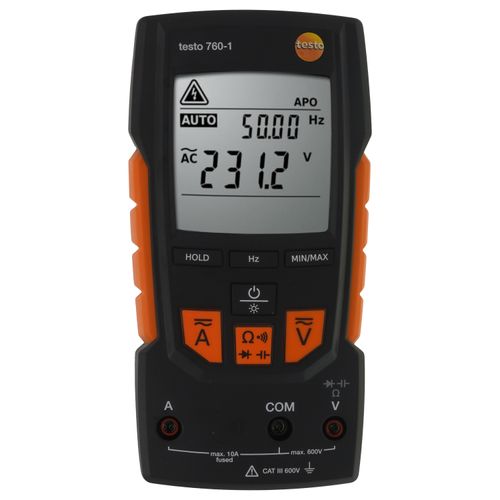

Digital Multimeter with Auto-Test and Capacitance

Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring. The testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket. This prevents accidentally blowing the meter's fuse because of incorrect connections.

Overview:

The function and range settings are always correct because the measurement parameters are detected and set automatically. Three easy-to-read buttons replace the traditional rotary switch when selecting manual test functions.

What's Included:

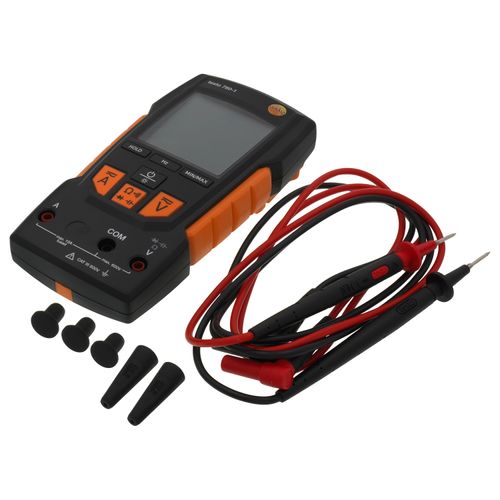

• Testo 760-1 digital multimeter 600 V with capacitance and auto-test setup includes 3 AAA batteries and test leads

Technical Data:

• DC Voltage Resolution: 400 mV / 0.1 mV, 4.000 V / 1 mV, 40.00 V / 10 mV, 400.0 V / 100 mV, 600 V / 1 V
• DC Voltage Accuracy: +/- (0.8 % of mv + 3 Digit)
• AC Voltage Resolution: 400 mV / 0.1 mV, 4.000 V / 1 mV, 40.00 V / 10 mV, 400.0 V / 100 mV, 600 V / 1 V
• DC Current Resolution: 4 A / 1 mA, 10 A / 10 mA
• DC Current Accuracy: +/- (1.5 % of mv + 5 Digit)
• AC Current Resolution: 4 A / 1 mA, 10 A / 10 mA
• AC Current Accuracy: +/- (1.5 % of mv + 5 Digit)
• Resistance Resolution: 400.0 Ohm / 0.1 Ohm, 4.000 kOhm / 1 Ohm, 40.00 kOhm / 10 Ohm, 400.0 kOhm / 100 Ohm, 4.000 MOhm / 1 kOhm, 40.00 MOhm / 10 kOhm
• Resistance Accuracy: +/- (1.5 % of mv + 3 Digit)
• Capacitance Resolution: 51.20 nF / 0.01 nF, 512.0 nF / 0.1 nF, 5.120 uF / 0.001 uF, 51.20 uF / 0.01 uF, 100.0 uF / 0.1 uF
• Capacitance Accuracy: +/- (1.5 % of mv + 5 Digit)
• Frequency Resolution: 5.120 Hz / 0.001 Hz, 51.20 Hz / 0.01 Hz, 512.0 Hz / 0.1 Hz, 5.120 kHz / 1 Hz, 51.20 kHz / 10 Hz, 512.0 kHz / 100 Hz
• Frequency Accuracy: +/- (0.1 % + 1 Digit)
• Protection class: IP64
• Warranty: 2 years
• Storage temperature: 5° to 140 F / -15 to +60 C
• Weight: 12 oz. / 340 g
• Overvoltage Category: CAT III 600V; CAT IV 300V
• Authorizations: CSA; TUV; CE
• Dimensions: 7 x 3 x 2 in. / 167 x 85 x 45 mm
• Operating temperature: 14° to 122 F / -10 to +50 C

Key Features:

• Auto test-setup based upon lead connection prevents blown fuses in the meter
• Meter prevents switching from V to A or A to V if leads are not in the proper socket
• Meter automatically detects testing in-process and selects correct meter configuration to save time and optimize accuracy
• 3 buttons that illuminate for easy and clear selection of test functions
