Digital Multimeter with Auto-Test, Capacitance, TRMS & Low Pass Filter

The testo 760-2 also includes TRMS, duty cycle, low pass filter, and temperature measurement. Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring. The testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket. This prevents accidentally blowing the meter's fuse because of incorrect connections.

Overview:

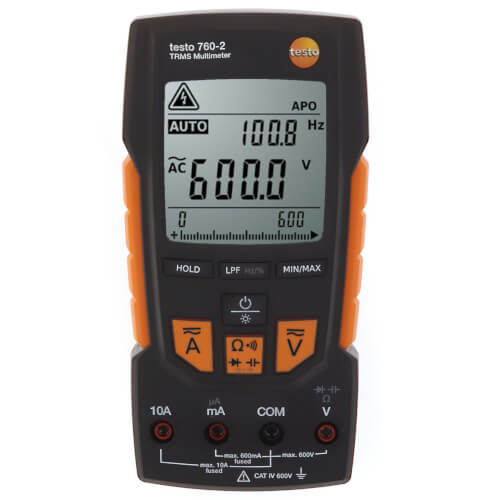

The function and range settings are always correct because the measurement parameters are detected and set automatically. Three easy-to-read buttons replace the traditional rotary switch when selecting manual test functions.

What's Included:

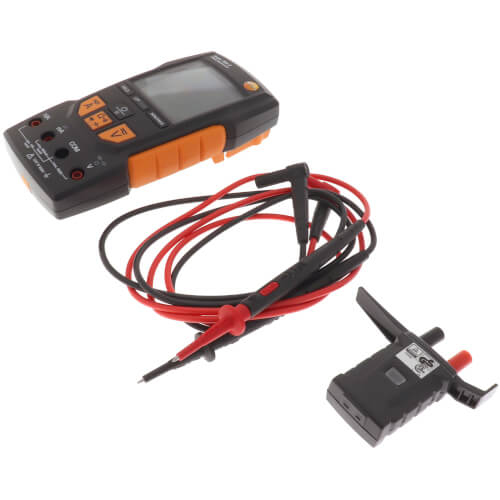

• Testo 760-2 TRMS digital multimeter 600 V with TRMS, capacitance, duty cycle, low pass filter, auto-test setup, and temperature measuring, 3 AAA batteries, test leads, and Type K thermocouple adapter

Technical Data:

• DC Voltage Resolution: 600 mV / 0.1 mV, 6.000 V / 1 mV, 60.00 V / 10 mV, 600.0 V / 100 mV
• DC Voltage Accuracy: +/- (0.8 % of mv + 3 Digit)
• AC Voltage Resolution: 600 mV / 0.1 mV, 6.000 V / 1 mV, 60.00 V / 10 mV, 600.0 V / 100 mV
• AC Voltage Accuracy: +/- (0.8 % of mv + 3 Digit)
• DC Current Resolution: 600 uA / 0.1 uA, 6000 uA / 1 uA, 60.00 mA / 10 uA, 600.0 mA / 100 uA, 6 A / 1 mA, 10 A / 10 mA
• DC Current Accuracy: +/- (1.5 % of mv + 5 Digit)
• AC Current Resolution: 600 uA / 0.1 uA, 6000 uA / 1 uA, 60.00 mA / 10 uA, 600.0 mA / 100 uA, 6 A / 1 mA, 10 A / 10 mA
• AC Current Accuracy: +/- (1.5 % of mv + 5 Digit)
• Resistance Resolution: 60.00 Ohm / 0.01 Ohm, 600.0 Ohm / 0.1 Ohm, 6.000 kOhm / 1 Ohm, 60.00 kOhm / 10 Ohm, 600.0 kOhm / 100 Ohm, 6.000 MOhm / 1 kOhm, 60.00 MOhm / 10 kOhm
• Resistance Accuracy: +/- (1.5 % of mv + 3 Digit)
• Capacitance Resolution: 6.000 nF / 0.001 nF, 60.00 nF / 0.01 nF, 600.0 nF / 0.1 nF, 6.000 uF / 0.001 uF, 60.00 uF / 0.01 uF, 600.0 uF / 0.1 uF, 6.000 mF / 1 uF, 30.00 mF / 10 uF
• Capacitance Accuracy: +/- (0.5 % of mv + 3 Digit)
• Frequency Resolution: 600.0 Hz / 0.1 Hz, 6.000 kHz / 1 Hz, 60.00 kHz / 10 Hz, 600.0 kHz / 100 Hz, 6.000 MHz / 1 kHz, 30.00 MHz / 10 kHz
• Frequency Accuracy: +/- (0.1 % of mv + 1 Digit)
• Protection class: IP64
• Warranty: 2 years
• Storage temperature: 5° to 140 F / -15 to +60 C
• Weight: 12 oz. / 340 g
• Overvoltage Category: CAT III 1000V; CAT IV 600V
• Authorizations: CSA; TUV; CE
• Dimensions: 7 x 3 x 2 in. / 167 x 85 x 45 mm
• Operating temperature: 14° to 122 F / -10 to +50 C

Key Features:

• Auto test-setup based upon lead connection prevents blown fuses in the meter
• TRMS with Low Pass Filter, Duty Cycle and Type K temperature
• Meter automatically detects testing in-process and selects correct meter configuration to save time and optimize accuracy
• Measure up to 400 A with optional clamp probe adapter
