Condensing Unit Install Kit Includes EPC, RLD15B, HUB8, and AC550
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
Product Highlights
Description
The UEi 510KIT has the essential testing solutions recommended by major manufacturers for the installation and maintenance of condensing units. This allows you to validate and document initial readings at the time of installation as required by most equipment warranties.

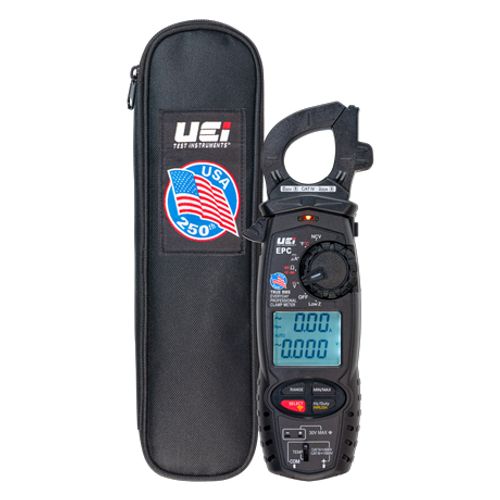

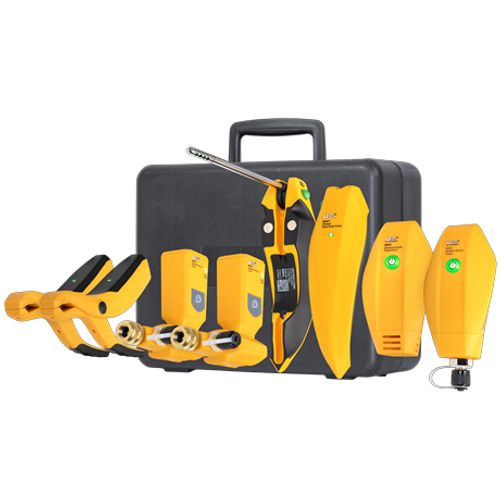

Check voltage levels and ensure proper grounding with the EPC True-RMS wireless clamp meter. Verify the temperature and evacuation rate of Suction/Liquid lines and check superheat and subcool values for final adjustments with the HUB8 smart refrigerant kit. Finally, ensure a perfect install by using the RLD15B to confirm the system is free of any refrigerant leaks.

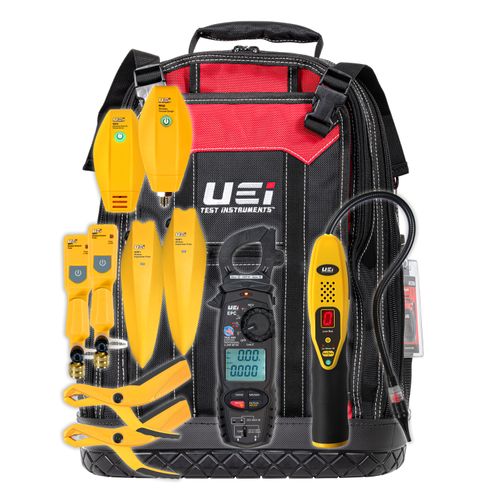

The 510KIT comes packed in the UEi Heavy Duty Tool Backpack, which features a rigid waterproof base, 2 zippered inner compartments, 10 vertical tool pockets, and an outer compartment with adjustable straps for securing larger items.
Includes
- Meter: EPC
- Leak Detector: RLD15B
- Batteries: AAA (4), AA (9)
- Wireless Outside Temperature Probe: WOT2
- Wireless Hygrometer Probe: WHP1 (2)
- Wireless Vacuum Gauge Probe: WVG2
- Wireless Pressure Probe: WPP1 (2)
- Wireless Pipe Clamp Probes: WPC2 (2)
- Tool Backpack: AC550
Features
- Manufacturer requirements to maintain warranty
- System is free from refrigerant leaks
- Proper high voltage to power supply and ground
- Low voltage meets wiring diagram requirements
- Evacuation Suction & Liquid valves
- Temperatures of Suction & Liquid lines
- Superheat and Subcool values for adjustments
- Hold : Yes
- Min/Max: Yes
- Auto power off: Yes
- Display count: 6000
- Dual display: Yes
- Temperature inputs: K-Type
- Warranty: Various
- Digital numeric leak indicator: Yes
- K-type input: Yes
- Digital: Yes
Specifications
- Dual Display: Yes
- Hold: Yes
- Min/Max: Yes
- Auto Power Off: Yes
- Display Count: 6000
- Temperature Inputs: K-Type
- Warranty: Various
- Digital Numeric Leak Indicator: Yes
- K-Type Input: Yes
- Digital: Yes
- TRMS: Yes
- LRA Inrush: Yes
- DC Volts: 1000V DC
- AC Volts: 750V AC
- Frequency (Hertz) - Test lead input: 99.99kHz
- Duty Cycle (%): 1.0 to 99.0%
- Resistance (Ohms): 60 M
- Diode: Yes
- Capacitance (Farads): 6000F
- Continuity: Yes
- DC Micro Current (Amps) - Test lead input: 2000A
- AC Micro Current (Amps) - Test lead input: 2000A
- Temperature: -328 to 2462F
- Low Z: Yes
- NCV Detection: Yes
- AC Current (Amps) - Test lead input: 600A AC
- DC Millivolts: 600mV
- AC Millivolts: 600mV
- Pipe Clamp - temp range: 32 to 180F
- Pressure Range: 0 to 20000 microns
- Pressure: 0 to 725 PSIG
- Relative Humidity: 0% to 100%
- Hygrometer - Temp Range: 32 to 140F
- Super Heat: 32 to 180F
- Subcool: 32 to 180F
- Vapor/Liquid Saturation: 32 to 180F
- Detects: Refrigerant
- Senses HFC, CFC, and HCFC Refrigerants and Blends: Yes
- Detection Sensitivity: .05 oz/year
Specs
| Product Type: | Pressure Probe Leak Detector Test Kit Backpack |
|---|---|
| Max Temp (F): | 180°F |
| Battery Type: | AA AAA |
| Batteries Included: | 13 |
