Heat Pump Install Kit Includes EPC, RLD15B, HUB8, EM720SPKIT, and AC550

The UEi 511KIT has the essential testing solutions recommended by major manufacturers for the installation and maintenance of heat pumps. This allows you to validate and document initial readings at the time of installation as required by most equipment warranties.

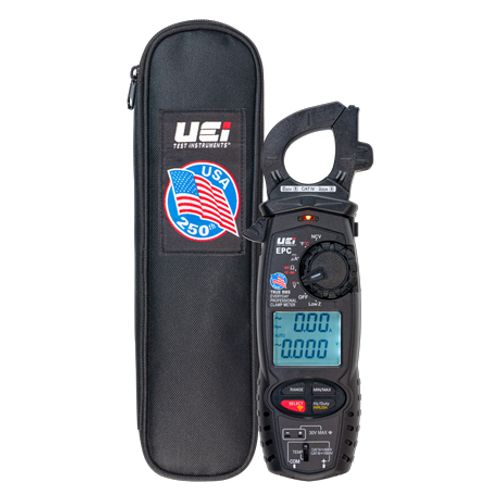

Check voltage levels and ensure proper grounding with the EPC True-RMS wireless clamp meter. Perform external static pressure tests on airflow using the EM720 differential manometer and static pressure kit. Verify the temperature and evacuation rate of Suction/Liquid lines and check superheat and subcool values for final adjustments with the HUB8 smart refrigerant kit. Finally, ensure a perfect install by using the RLD15B to confirm the system is free of any refrigerant leaks.

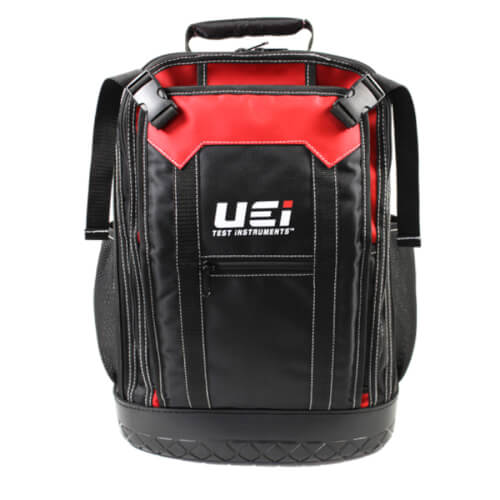

The 511KIT comes packed in the UEi Heavy Duty Tool Backpack, which features a rigid waterproof base, 2 zippered inner compartments, 10 vertical tool pockets, and an outer compartment with adjustable straps for securing larger items.

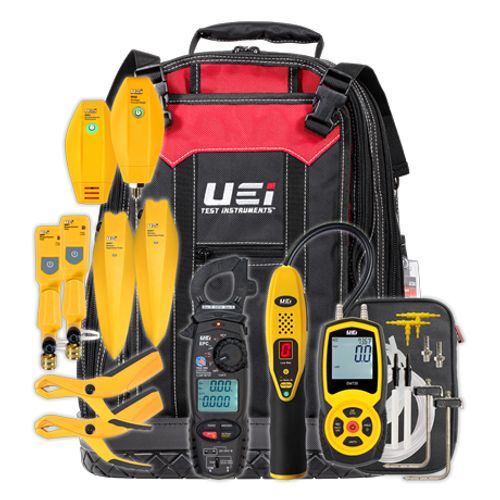

Includes

• Meter: EPC
• Manometer: EM720SPKIT
• Leak Detector: RLD15B
• Batteries: AAA (4), AA (9), 9V
• Wireless Outside Temperature Probe: WOT2
• Wireless Hygrometer Probe: WHP1 (2)

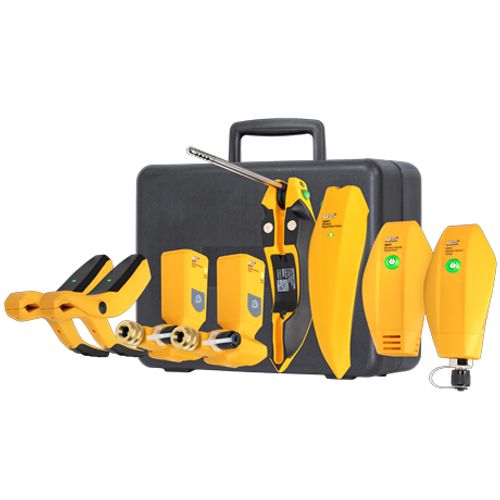

• Wireless Vacuum Gauge Probe: WVG2
• Wireless Pressure Probe: WPP1 (2)
• Wireless Pipe Clamp Probes: WPC2 (2)
• Tool Backpack: AC550

Features

• Manufacturer requirements to maintain warranty
• CFM via external static pressure test
• System is free from refrigerant leaks
• Proper high voltage to power supply and ground
• Low voltage meets wiring diagram requirements
• Evacuation Suction & Liquid valves
• Temperatures of Suction & Liquid lines
• Superheat and Subcool values for adjustments
• Hold : Yes
• Min/Max: Yes
• Auto power off: Yes
• Display count: 6000
• Dual display: Yes
• Temperature inputs: K-Type
• Dual pressure input: Yes
• Warranty: Various
• Digital numeric leak indicator: Yes
• K-type input: Yes
• Digital: Yes

Specifications

• TRMS: Yes
• LRA Inrush: Yes
• DC Volts: 1000V DC
• AC Volts: 750V AC
• Frequency (Hertz) - Test lead input: 99.99kHz
• Duty Cycle (%): 1.0 to 99.0%
• Resistance (Ohms): 60 M
• Diode: Yes
• Capacitance (Farads): 6000F
• Continuity: Yes
• DC Micro Current (Amps) - Test lead input: 2000A
• AC Micro Current (Amps) - Test lead input: 2000A
• Temperature: -328 to 2462F
• Low Z: Yes
• NCV Detection: Yes
• AC Current (Amps) - Test lead input: 600A AC
• DC Millivolts: 600mV
• AC Millivolts: 600mV
• Pipe Clamp - temp range: 32 to 180F
• Pressure Range: 60 InH2O
• Pressure: 0 to 725 PSIG
• Relative Humidity: 0% to 100%
• Microns Range: 0 to 20000 microns
• Hygrometer - Temp Range: 32 to 140F
• Super Heat: 32 to 180F
• Subcool: 32 to 180F
• Vapor/Liquid Saturation: 32 to 180F
• Detects: Refrigerant
• Senses HFC, CFC, and HCFC Refrigerants and Blends: Yes
• Detection Sensitivity: .05 oz/year
