Test and Check Professional Kit

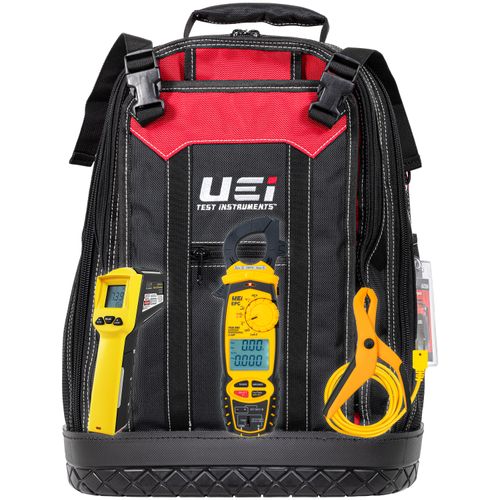

This Kit provides the recommended test instruments required by furnace start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation. 520KIT is packed in our UEi Tool Backpack. Built rugged, waterproof base, two compartments with inner pocket options and includes D-clip.

This equipment helps confirm:

Manufacturer requirements to maintain warranty

CFM via external static pressure test

Gas flow pressure

System is safe from gas leaks

Proper high voltage to power supply and ground

Low voltage meets wiring diagram requirements

Features:

• Hold: Yes
• Min/Max: Yes
• Auto power off: Yes
• Display count: 6000
• Backlight: Yes
• Dual display: Yes
• Temperature inputs: K-Type
• Protective boot or overmolding: Yes
• Dual pressure input: Yes
• Differential pressure: Yes
• Zero: Yes
• Selectable units: Yes
• Magnetic mount: Yes
• Warranty: Various
• Hi-Resolution accuracy: Yes
• K-type input: Yes
• Folding temp probe: Yes
• Digital: Yes

Specifications:

• TRMS: Yes
• AC volts: 750VAC
• DC volts: 1000VDC
• AC current (amps): 600A AC
• AC micro current (amps): 2000µA
• DC micro current (amps): 2000µA
• DC micro volts: 600mV
• AC micro volts: 600mV
• Resistance (Ohms): 60MOhms
• Capacitance (Farads): 6000µF
• Frequency (Hertz): 99.99kHz
• Duty cycle (%): 1.0 to 99.0%
• Temperature: -328° to 2462°F
• Continuity: Yes
• Diode: Yes
• NCV detection: Yes
• Pressure: ±60 InH2O
• Differential temperature: Yes (PDT655)
• Detects: Combustible Gas
• Detection sensitivity: < 50ppm methane
• LRA Inrush: Yes
• Low Z: Yes

Includes:

• EPC True-RMS Wireless Clamp Mete
• EM720 Differential Manometer and Static Pressure Kit
• Leak Detector: CD100A
• Thermometer: PDT655
• Batteries: AA. (2), CR2032, 9V
• Tool backpack: AC550
