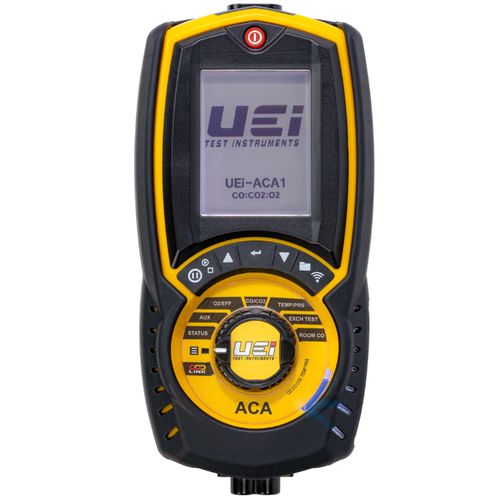

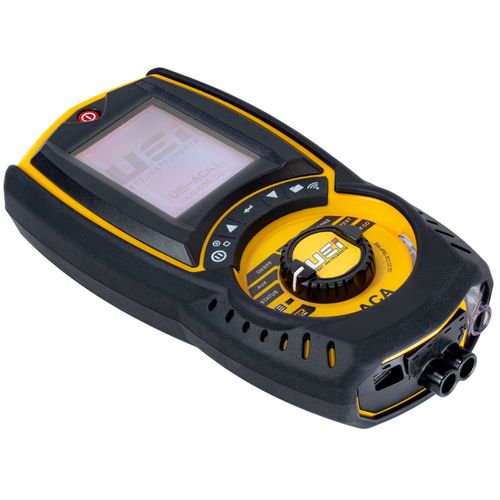

Advanced Combustion Analyzer for Commercial Boilers and Furnaces

The ACA features a new high-contrast graphic display, new flue probe with integrated pressure readings, an H2 compensated 10,000 ppm CO sensor with purge pump protection, and LINK wireless probe connection for use with optional wireless pipe clamp probes.

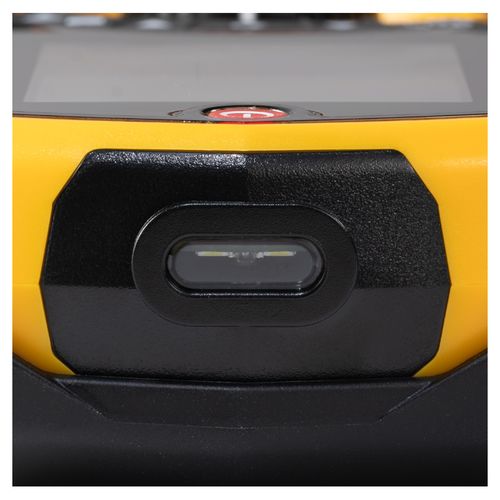

ACA allows techs to print to an optional printer through the IR port for hard copies or wireless to a compatible device using the KANE LIVE App to record and email results.

Features:

• Ambient CO2 readings to test building IAQ Integrate optional wireless probes
• CO over-range pump protection from high CO levels
• High-contrast graphic display
• UEi Concierge+ 15-min analyzer review with a tech
• CO sensor, 10,000ppm H2 Compensated & NOx filtered
• CO2 sensor (flue or ambient)
• O2, sensor
• Differential Pressure and draft
• Flue and Inlet Temperature, differential temperature
• Combustion Efficiency and Excess Air
• Heat Exchanger test
• Room CO test
• Optional NO (Nitric Oxide) sensor upgradable

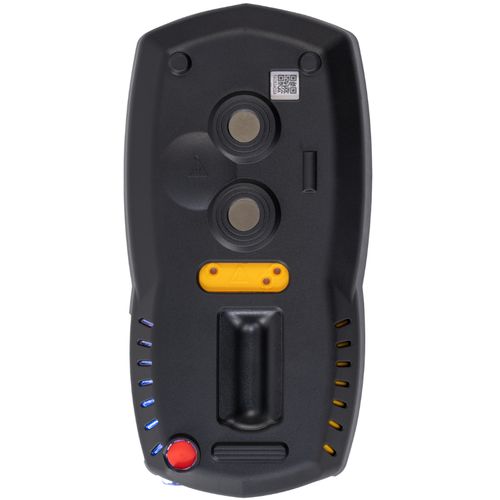

• Protective Boot with built-in magnetic mount
• Low Flow Detection to protect reading accuracy
• Flue probe with integrated gas, temperature, and draft hose connections

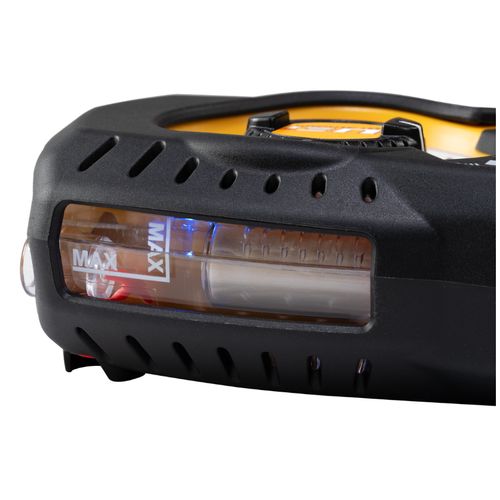

• Protective water trap
• Calibration countdown reminders
• Optional thermal printer for on-site hard copy printouts

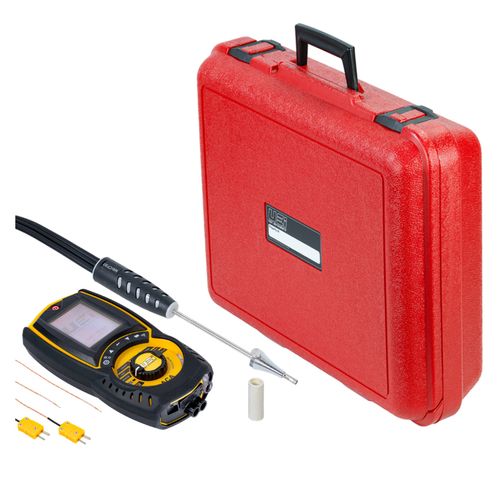

Includes:

• Analyzer
• 2 Thermocouples
• Carrying Case

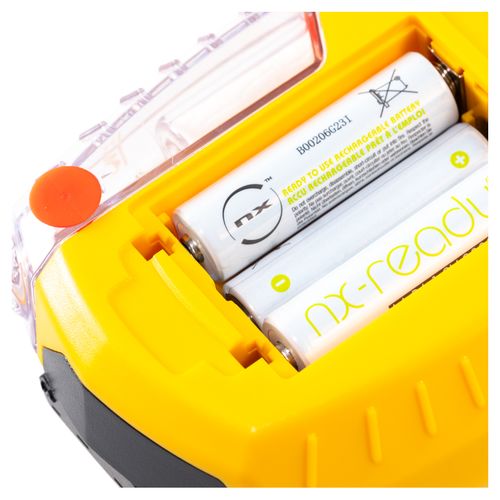

• 3 Rechargeable AA Batteries
