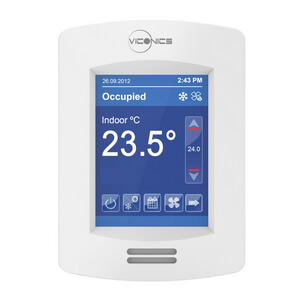

VT8650 Rooftop Unit, Heat Pump & IAQ Room Controller w/ RH & PIR Motion Sensors & ZigBee Pro On-Board

Smart energy management has never been easier than with the VT8650 room controllers for Rooftop units, heat pumps and indoor air quality applications. Designed for new construction and retrofit projects, the room controllers dramatically decrease project delivery costs by reducing installation, configuration and commissioning time. No complex software or tools are required to customize functionality in order to meet your applications requirements. The room controllers provide all the advanced features and monitoring functions required by modern building automation systems in a simple compact enclosure. An elegantly simple casing combines with configurable screen colors to match decor. Display your own logo and custom messages on screen to reinforce your brand and provide a more enjoyable occupant experience.

Product Features

• Elegant style combinations, designed to complement any decor
• Customizable color digital touch screen interface with multi-language support
• Configurable as 1H / 1C, 2H / 2C, 3H / 2C and Modulating (Analog) Heat / 2C for Rooftop units
• CO2 and fresh air inputs for Indoor Air Quality (IAQ) applications
• Suitable for both commercial and hospitality markets and systems
• Fully programmable control sequences using scripting
• On board configuration inter face utility
• Configurable sequence of operation
• Configurable Economizer
• Configurable Scheduler
• Change of value (COV) function for BMS integration
• Humidity sensor with on-board dehumidification strategy
• Advanced occupancy functions for commercial and lodging applications
• Includes Passive Infrared (PIR) occupancy sensor
• Optional wireless door, window, motion and water leak sensors available
• BACnet MS/ TP or Modbus RTU (user selectable)
• ZigBee Pro (P) option for direct MPM integration (On-board or plug-in ZigBee Pro wireless module)
• BACnet/IP and email notification via Wi-Fi (with VCM8002V5031)
