Description

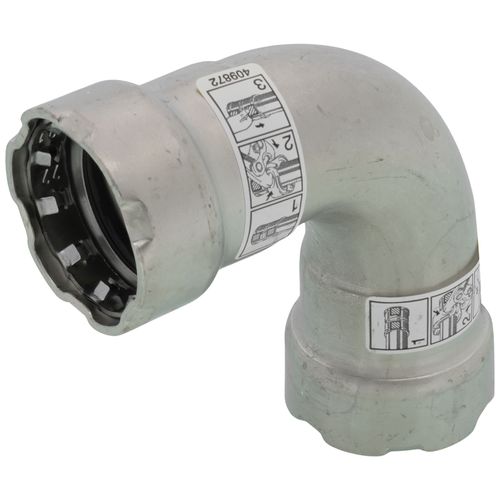

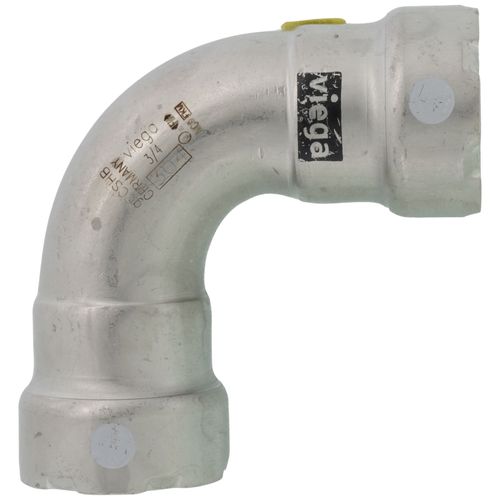

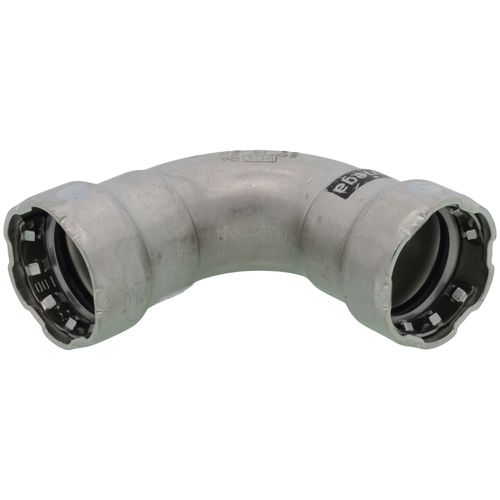

MegaPress® Elbow, Fitting/Connector Type: 90 deg Elbow, 3/4 in Nominal Size, Press, 200 psi, 0 to 250 deg F, 304 Stainless Steel, Import
Viega MegaPress® Stainless 304 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for both commercial and industrial applications. MegaPress® Stainless 304 fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 304 system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases.
Specifications
Features
Viega MegaPress® Stainless 304 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for both commercial and industrial applications. MegaPress® Stainless 304 fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 304 system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases.
Specifications
- End Style: Press
- Fitting/Connector Type: 90 deg Elbow
- Warranty: Limited
- Nominal Size: 3/4 in
- Angle: 90 deg
- Domestic/Import: Import
- Material: 304 Stainless Steel
- Temperature Rating: 0 to 250 deg F
- Pressure Rating: 200 psi
- Includes: FKM Sealing Element
- Application: Commercial and Industrial
- Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
Features
- Patented Viega Smart Connect® makes secure connection in less than 7 seconds
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No welding, grinding or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
- Wide range of fitting configurations
- Eliminate threading and welding
- No fire watches, hot work permits or gas freezing
- Makes secure press connections from 1/2 to 2 in less than seven seconds
- Compatible with existing press tools
