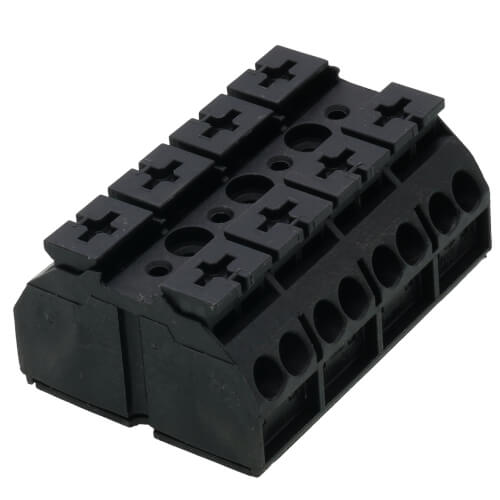

4-Pole 4-Conductor Chassis-Mount Terminal Strip w/o Ground Contact
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2.51 each
In Stock
Get 143 Tue, Jun 23
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
500v
32 Amps
Black
Description
–
4-Pole 4-Conductor Chassis-Mount Terminal Strip w/o Ground Contact
Connection Data
Connection Data
- Connection technology Push-in CAGE CLAMP®
- Actuation type Push-button
- Connectable conductor materials Copper
- Solid conductor 0.5 … 4 mm² / 20 … 12 AWG
- Solid conductor; push-in termination 0.75 … 4 mm² / 18 … 12 AWG
- Stranded conductor 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor; with insulated ferrule 0.5 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded conductor; with ferrule; push-in termination 0.75 mm² / 18 AWG
- Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Strip length 10 … 11 mm / 0.39 … 0.43 inches
- Number of poles 4
- Wiring direction Side-entry wiring
Specs
–
| Product Type: | Terminal Strip |
|---|---|
| Poles: | 4 |
| AWG: | 20-12 20-16 18-12 |
| Voltage: | 500v |
| Amperage: | 32 |
| Color: | Black |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Nice product, makes connecting wires quick and easy.
These terminal strips save time because you don't have to crimp eyelets on wires and use a screw driver to fasten. I am using for hobby application, slot car tracks and train layouts. Hobby supplier had same product for close to three times the price I paid here at SupplyHouse.
Nathan
Selinsgrove, Pa
2 years ago
Verified Buyer
Was this review helpful to you?
