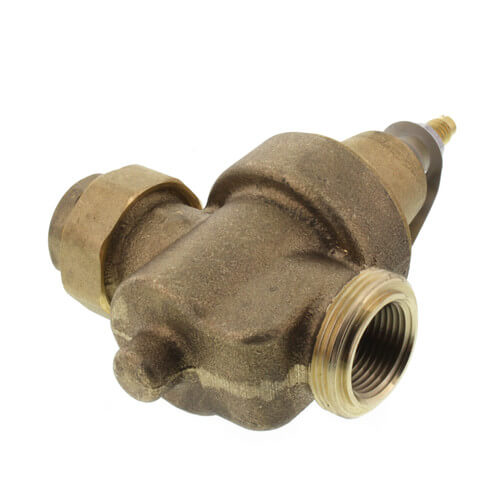

LFN55BM1-G - 1/2" FPT Water Pressure Reducing Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
0009544 has been discontinued
Discontinued August 16, 2020
This product was discontinued by the manufacturer.
MANUALS (1)
Non-Returnable Item
–
Our standard return policy does not apply to this special-order item. Once ordered, it cannot be returned or cancelled.
Product Highlights
–
Brass
75 MAX PSI
25 PSI
FNPT
FNPT
1/2"
Description
–
Series LFN55B-M1 Water Pressure Reducing Valves are designed to reduce
incoming water pressure to a sensible level to protect plumbing system
components and reduce water consumption. The LFN55B features Lead
Free* construction to comply with Lead Free* installation requirements. This
series is suitable for water supply pressures up to 400psi (27.6 bar) and may
be adjusted from 25 to 75psi (172 – 517 kPa). The standard setting is 50psi
(345 kPa). All parts are quickly and easily serviceable without removing the
valve from the line. The standard bypass feature permits the flow of water
back through the valve into the main when pressures, due to thermal expansion
on the outlet side of the valve, exceed the pressure in the main supply.
Features
Features
- Gauge Tapping
- Double union inlet & outlet connections (option DU)
- Integral stainless steel strainer
- Thermoplastic seat
- Lead Free* brass body construction
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
Specs
–
| Size: | 1/2" |
|---|---|
| Material: | Brass |
| Max Temp (F): | 180°F |
| Min Temp (F): | 33°F |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 75 |
| Pressure Range: | 25 to 75 psi |
| Pressure Set Point: | 50 psi |
| Lead Free: | Yes |
| Inlet Type: | FNPT |
| Outlet Type: | FNPT |
