Description

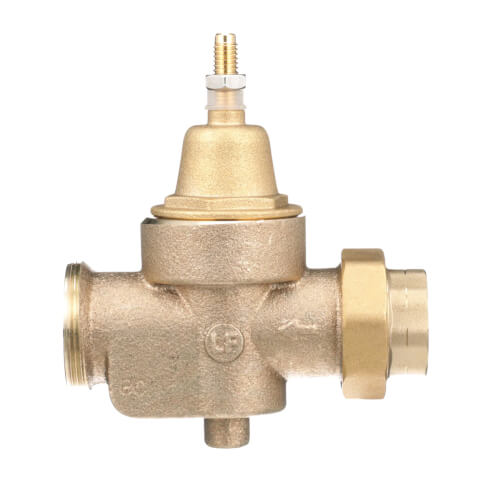

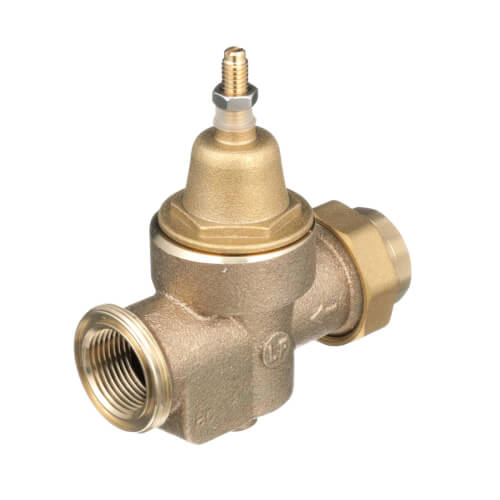

Series LFN55B-M1 Water Pressure Reducing Valves are designed to reduce
incoming water pressure to a sensible level to protect plumbing system
components and reduce water consumption. The LFN55B features Lead
Free* construction to comply with Lead Free* installation requirements. This
series is suitable for water supply pressures up to 400psi (27.6 bar) and may
be adjusted from 25 to 75psi (172 – 517 kPa). The standard setting is 50psi
(345 kPa). All parts are quickly and easily serviceable without removing the
valve from the line. The standard bypass feature permits the flow of water
back through the valve into the main when pressures, due to thermal expansion
on the outlet side of the valve, exceed the pressure in the main supply.
Features
Features
- Low Pressure Range 10-35psi (69-241 kPa)
- Double union inlet & outlet connections (option DU)
- Integral stainless steel strainer
- Thermoplastic seat
- Lead Free* brass body construction
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
