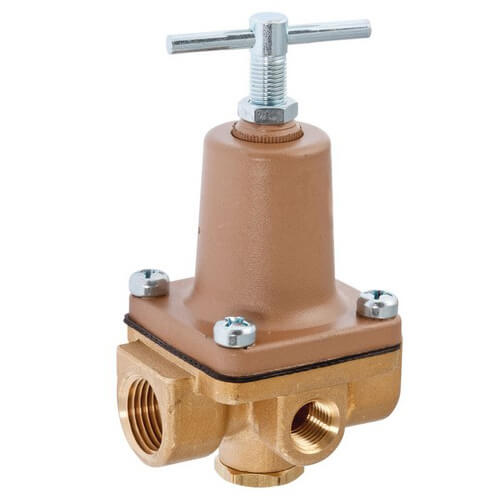

LF263A - 1/2" NPT 3-Way Small Water Pressure Regulator, 10-125 psi (Lead Free)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$273.78 each
In Stock
Get 3 Mon, Jun 15
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brass
125 MAX PSI
10 PSI
FNPT
FNPT
1/2"
Description
–
This 1/2 inch lead free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 10 to 125 psi (0.7 to 8.6 bar) and is factory set at 25 psi (1.7 bar).
Product Features
Product Features
- Stainless steel stem and spring
- NPT threaded female inlet and outlet connections
- Oversized orifice
- Maximum working pressure is 300 psi (21 bar)
- Temperature range is 0 to 140 degrees F (-18 to 60 degrees C)
- Tee handle adjustment
- Lead free brass body
Specs
–
| Size: | 1/2" |
|---|---|
| Material: | Brass |
| Inlet Type: | FNPT |
| Max Temp (F): | 140°F |
| Min Temp (F): | 0°F |
| Max Pressure (PSI): | 125 |
| Min Pressure (PSI): | 10 |
| Lead Free: | Yes |
| Pressure Range: | 10-125 psi |
| Outlet Type: | FNPT |
