Product Highlights
–
Stainless Steel, Bronze, Brass
Angle
Threaded Connection
3/4"
Description
–

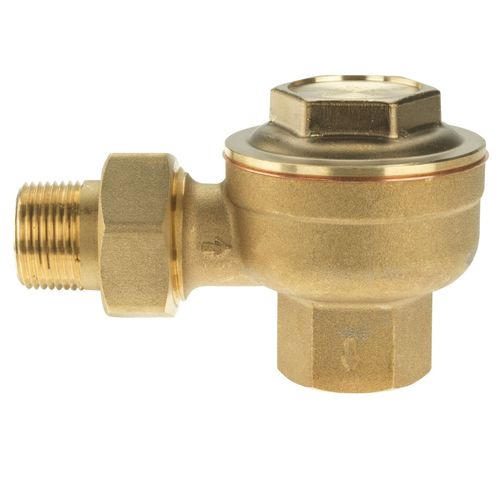

This 3/4 inch angle pattern thermostatic steam trap is designed to remove condensate, air and non-condensable gases from heating systems while still sensitive enough to close tightly in the presence of steam. The unit is factory calibrated and tested under live steam to ensure optimal performance. The interior spring-loaded design is designed to make it function independently from the trap body. Recommended for use on low pressure and vacuum heating, convectors, unit ventilators, and radiators.
Features & Benefits:
- Rugged brass construction
- Union inlet
- Female x female connections
- Copper sweat tailpiece
Specifications:
- Air Venting: No Vent
- Body Material: Brass
- Body Pattern: Angle
- GDS Status: Registered
- Hydronic Item Type: Steam Trap
- Inlet Connection Size: 3/4 IN
- Inlet Connection Size-Metric: 20 MM
- Inlet Connection Type: Male Threaded
- Inlet Thread Type: NPT
- Maximum Operating Temperature-Fahrenheit: 267
- Maximum Pressure-PSI: 25
- Maximum Steam Pressure-PSI: 25
- Maximum Temperature-Fahrenheit: 267
- Maximum Working Pressure-PSI: 25
- Minimum Pressure-PSI: 25.00
- Minimum Working Pressure-PSI: 25.00
- Outlet Connection Size: 3/4 IN
- Outlet Connection Type: Female Threaded
- Outlet Thread Type: NPT
- Pressure Adjustment Range: 25" to 25 PSI
Specs
–
| Material: | Stainless Steel Bronze Brass |
|---|---|
| Body Pattern: | Angle |
| Connection Type: | Threaded |
| Product Type: | Steam Trap |
| Application: | Heating |
| Size: | 3/4" |
