Description

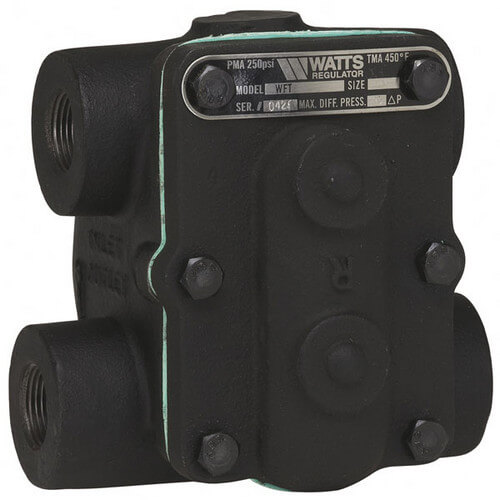

Series WFT float & thermostatic steam traps are designed to provide continuous air venting and separate condensate draining with maximum efficiency and service. They feature an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. Series WFT is water hammer resistant and can be serviced without disturbing system piping. It is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment.

Features:
  • Cast iron body & cover, stainless steel valve head, valve seat, valve seat gasket, and float
  • All stainless steel internal components protect against erosion and corrosion
  • Universal 4-port design
  • Balanced pressure thermostatic element
  • Extra-long life and dependable service
  • Water hammer resistant
  • Can be serviced without disturbing system piping
Hide Description
Specs
Series:

WFT-30

Size:

1-1/2"

Max Pressure (PSI):

30

Max Temp (F):

353°F

Material:

Cast Iron

Application:

Heating

Type:

Thermostatic Steam Trap

Connection Type:

Threaded

Thread Type:

Male

×
