Description

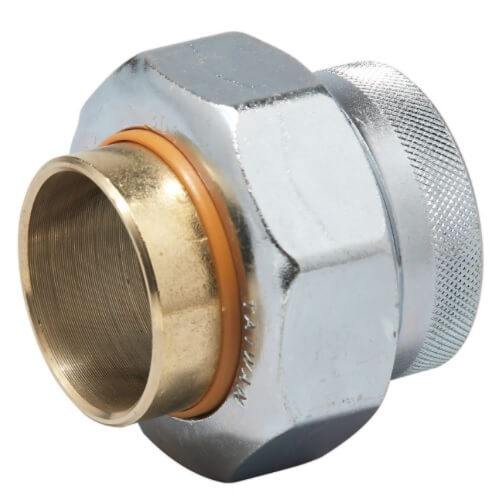

This 3/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connections, union nut, two tailpieces, and an EPDM gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 300 degrees F (149 degrees C) at 50 psi (3.4 bar)

Features
  • Maximum temperature 300 degrees F (149 degrees C)
  • Maximum pressure is 50 psi (3.4 bar)
  • EPDM gasket for use in steam or hot water applications
  • FIP thread to solder connections
Read more
Specs
Size:
1-1/4"
Lead Free:
Yes
Connection Type:
FNPT x C
Product Type:
Dielectric Union
Material:
Brass
Steel
Thread Type:
Female
×
