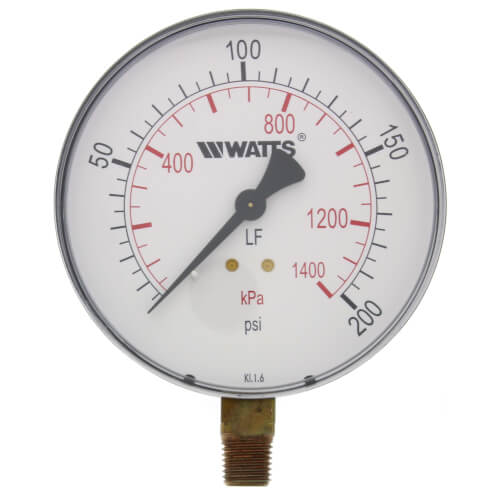

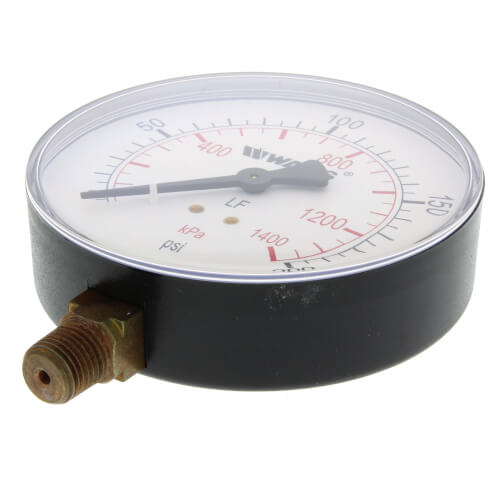

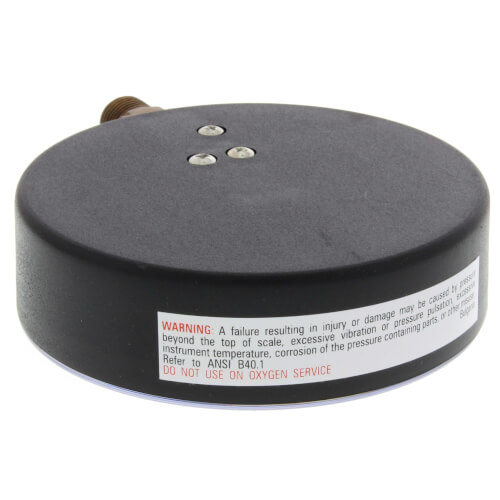

1/4" DPG-1 Bottom Entry Pressure Gauge w/ 4" Dial - Lead Free (0-200 PSI)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$71.64 each
In Stock
Get 3 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
This item replaces: 0615626
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/4"
Threaded Connection
ABS Polymer
-4°F Min Temp
176°F Max Temp
200 MAX PSI
Description
–
Series DPG-1 Lead Free Bottom-Entry Pressure Gauges are used in commercial, residential, and institutional HVAC applications. It features an ABS polymer case, Kostil Polymer window, 1/4" (8mm) NPT connection, and copper alloy Bourdon tube sensing element. Accuracy is ASME, Type B. Available in various pressure rating scales. Dual scale (PSI and kPa).
Specs
–
| Application: | Pressure |
|---|---|
| Size: | 1/4" |
| Connection Type: | Threaded |
| Material: | ABS Polymer |
| Min Temp (F): | -4°F |
| Max Temp (F): | 176°F |
| Max Pressure (PSI): | 200 |
| Type: | Dry |
| Dial Size: | 4" |
| Measures: | Pressure |
| Lead Free: | Yes |
| Mount: | Bottom |
