Description
Note: Lead Free

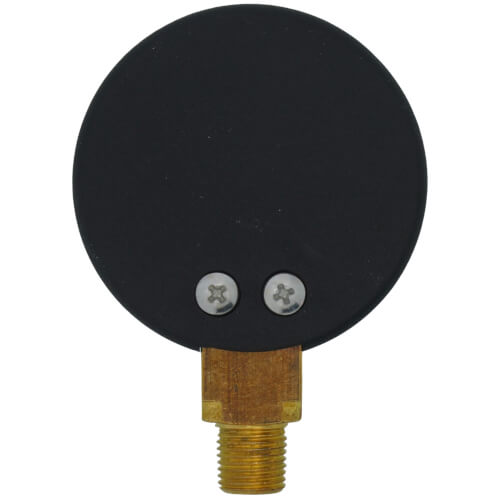

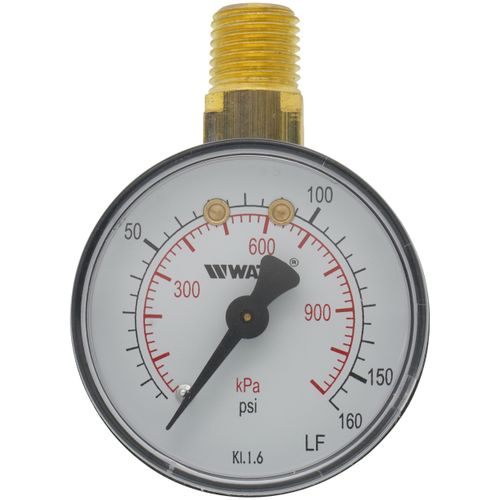

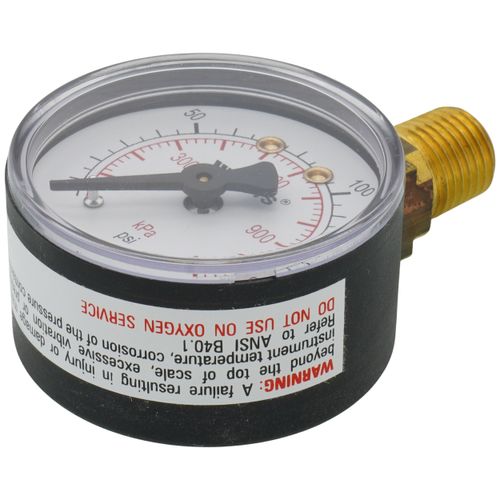

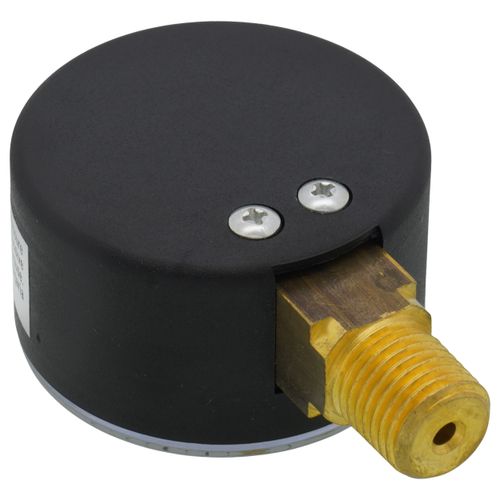

This 1/4 inch top-entry pressure gauge is used in commercial, residential, and institutional HVAC applications. It features an ABS polymer case, Kostil Polymer window, 1/4 inch NPT connection, and copper alloy Bourdon tube sensing element. Accuracy is ASME, Type B. It has a dual scale reading in psi and kPa.

Product Features
  • Copper alloy Bourdon sensing element
  • ABS polymer case
  • Tin alloy welding
  • Kostil polymer window
Hide Description
Manuals (1)
Specs
Max Pressure (PSI):

160

Size:

2"

Lead Free:

Yes

Connection Size:

1/4"

Connection Type:

Threaded

Material:

ABS Polymer

Copper

Dial Size:

2"

Type:

Dry

Measures:

Pressure

Mount:

Top

×
